Differential Case Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the taper roller bearing using the ST.
    ST 498077000 REMOVER
    G06654711Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the hypoid driven gear mounting bolt using the ST.
    ST 18270KA020 SOCKET (E20)
    G06654712Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the differential case (LH).
    G06654713Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the differential bevel gear and washer from differential case.
    G06654714Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the straight pin.
    G06654715Courtesy of SUBARU OF AMERICA, INC.

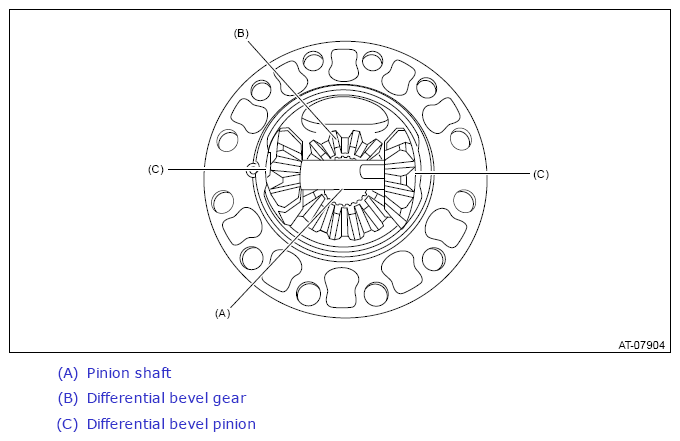

  6. Remove the pinion shaft, then remove the differential bevel gear, washer and differential bevel pinion.
    G13261196Courtesy of SUBARU OF AMERICA, INC.
