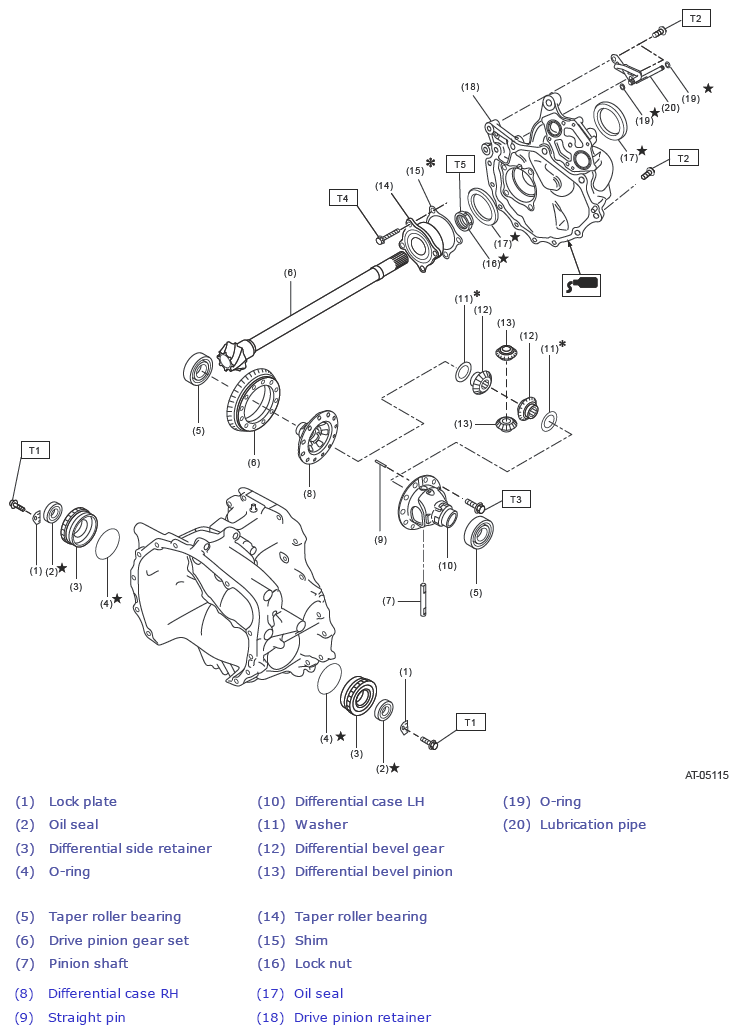

Front Differential Gear
WARNING: This page is about a different variant/trim than selected.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 25 (2.5, 18.4)
T2: 43 (4.4, 31.7)
T3: Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>FRONT DIFFERENTIAL ASSEMBLY>ASSEMBLY>DIFFERENTIAL CASE ASSEMBLY .
T4: 70 (7.1, 51.6)
T5: 130 (13.3, 95.9)
