Transmission Control Device: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AUTOMATIC TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the oil pan and control valve body. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONTROL VALVE BODY>REMOVAL .
  3. Remove the inhibitor switch. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>INHIBITOR SWITCH>REMOVAL .
  4. Remove the spring pin.
    NOTE: Prevent the spring pin from dropping in the transmission using paper towel etc.
    G06654616Courtesy of SUBARU OF AMERICA, INC.

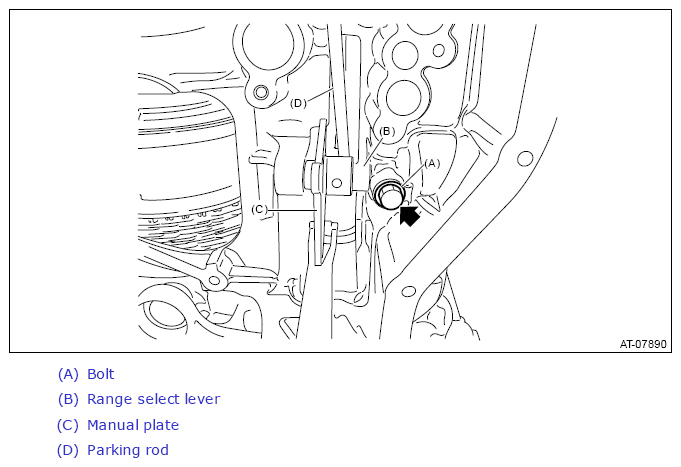

  5. Remove the bolt and remove the range select lever, manual plate and parking rod.
    NOTE: Do not damage the lip of oil seal press-fitted in the case.
    G13261092Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the detent spring.
    G06654618Courtesy of SUBARU OF AMERICA, INC.
