Generator Bracket

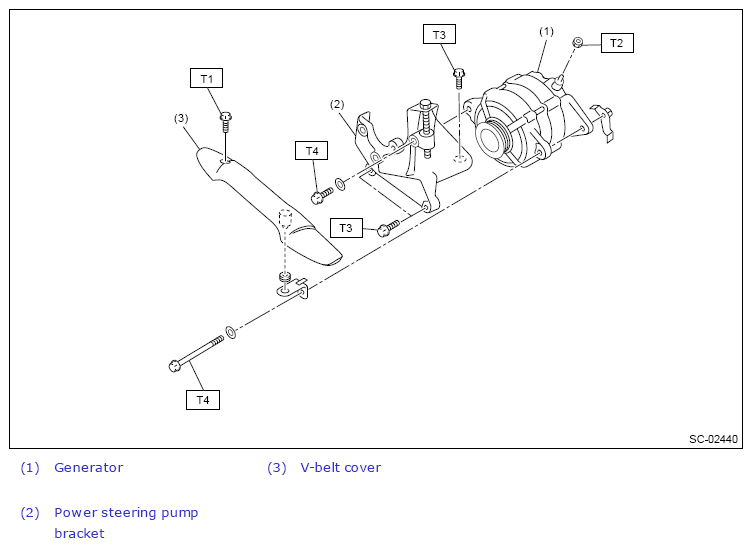

Fig 1: Components Of Generator Bracket (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7 (0.7, 5.2)

T2: 15.5 (1.6, 11.4)

T3: 22 (2.2, 16.2)

T4: 25 (2.5, 18.4)
