Power Steering Computer: Installation
- Correct handling and precautions for operation (Refer to POWER STEERING SYSTEM )
- Power steering computer bracket installation.
- Install the power steering computer bracket in place with the four screws.
Standard value: T=3.5N.m {36kgf.cm} {2.6ft.lbf}
- Install the power steering computer bracket in place with the four screws.
- Install the power steering computer ASSY.
- Install the power steering computer ASSY in place with 2 bolts.
Standard value: T=10N.m {102kgf.cm} {7.4 ft.lbf}
- Connect the three connectors to the power steering computer ASSY.

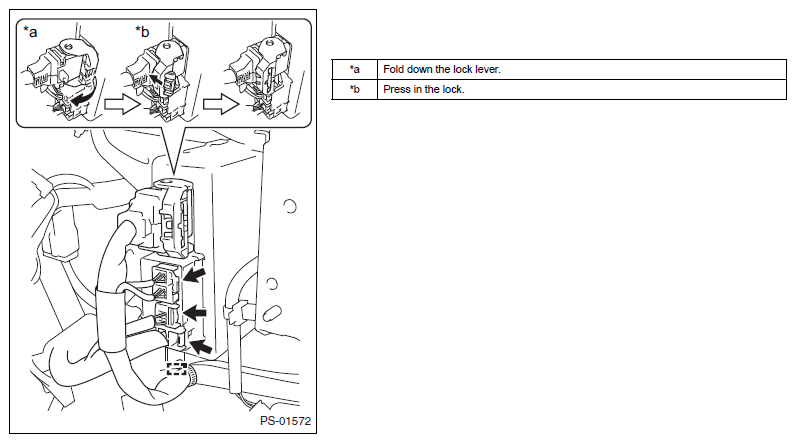

- Ensure that the connectors are securely connected to the power steering computer ASSY.NOTE: As shown in the figure, fold down the connector lock lever to establish a connection and push in the lock for the lock lever securely.
- Install the wiring harness clamp to the power steering computer bracket.
- Install the power steering computer ASSY in place with 2 bolts.
- Installation of the instrument panel junction block ASSY (Refer to INSTALLATION )
- Steering zero point calibration
- Always perform a steering zero point calibration after replacing the power steering computer ASSY (Refer to WORK SUPPORT )
