Inspection Mode S
| DTC | Item | Condition | Number of driving cycles on the detecting condition |
|---|---|---|---|
| P0851 | PARK/NEUTRAL SWITCH INPUT CIRCUIT LOW | MT model | 2 |
| P0852 | PARK/NEUTRAL SWITCH INPUT CIRCUIT HIGH | MT model | 2 |
WARNING:
When performing inspection mode S on a public road, pay sufficient attention to the traffic condition and give the highest priority to safe driving.
Diagnostic procedure:
- Using the Subaru Select Monitor, perform the clear memory of [Engine]. Ref. to COMMON (DIAG)>CLEAR MEMORY .

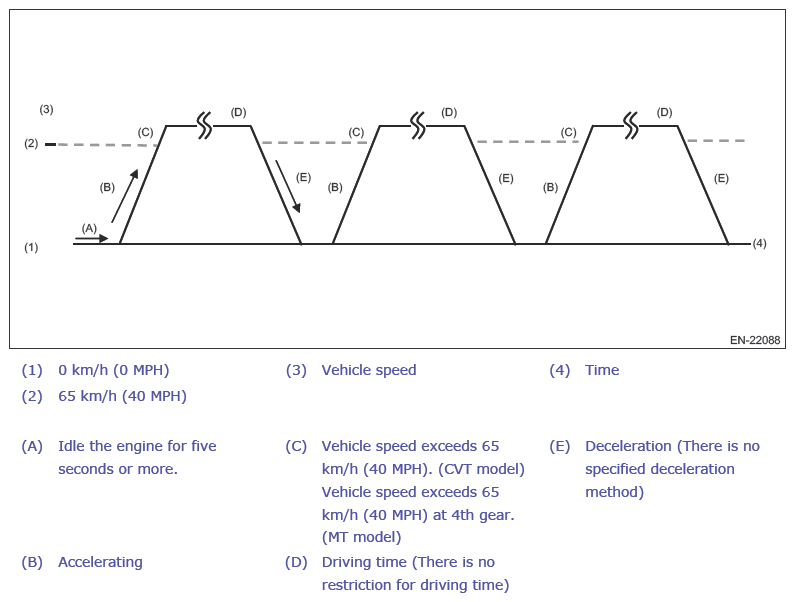

- Drive 3 times according to the drive pattern described below.
- Read the temporary code using the Subaru Select Monitor or general scan tool. Ref. to COMMON (DIAG)>DIAGNOSTIC TROUBLE CODE (DTC) .
