DTC P1F06: Internal Control Module Keep Alive Memory (KAM) Error: Notes

1. -

DTC detecting condition:

Immediately at fault recognition

Trouble symptom:

Driveability getting worse.

Courtesy of SUBARU OF AMERICA, INC.

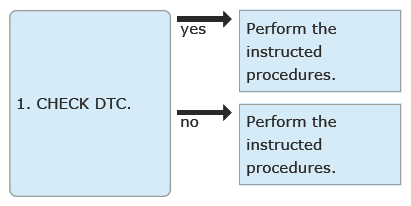

1. CHECK DTC  .
   1. Using the Subaru Select Monitor, perform the clear memory of [AWD Control]. Ref. to COMMON (DIAG)>CLEAR MEMORY .
   2. Read the DTC of [AWD Control] using the Subaru Select Monitor. Ref. to AWD CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .

   Is DTC P1F06 displayed?

   Yes:  Replace the AWD Control Module. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TH2A)>AWD CONTROL MODULE .

   No:  Current condition is normal. Check for interference from noise, etc.
