Engine Control System (Diagnostics) (HEV) - Introduction
>>
General Description
>>
System Block Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

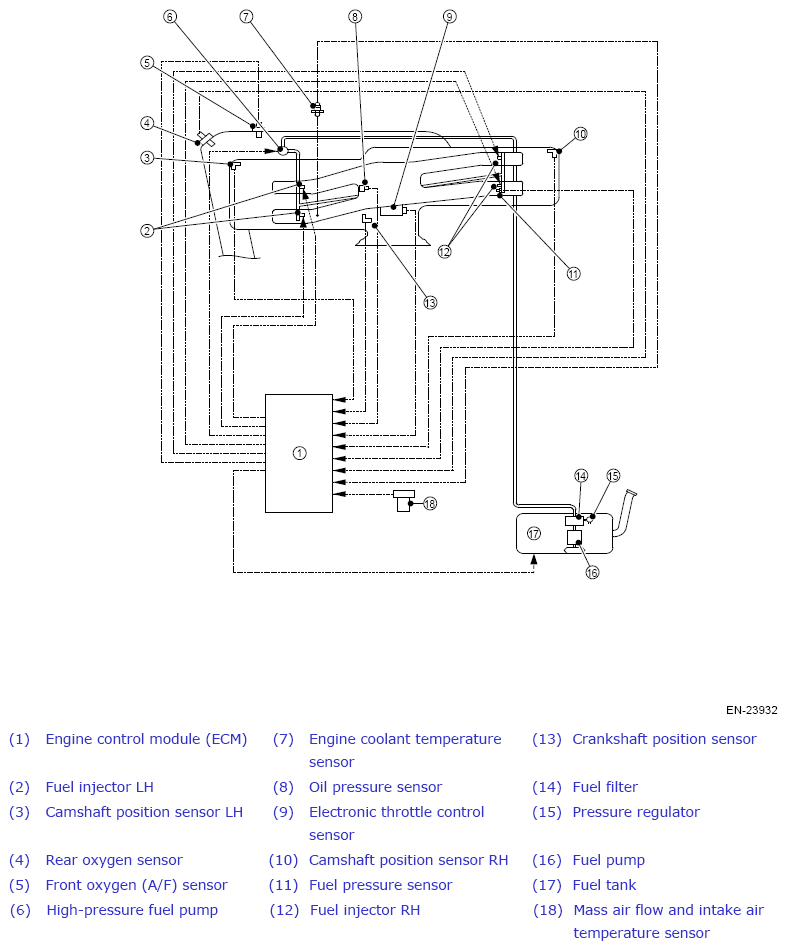

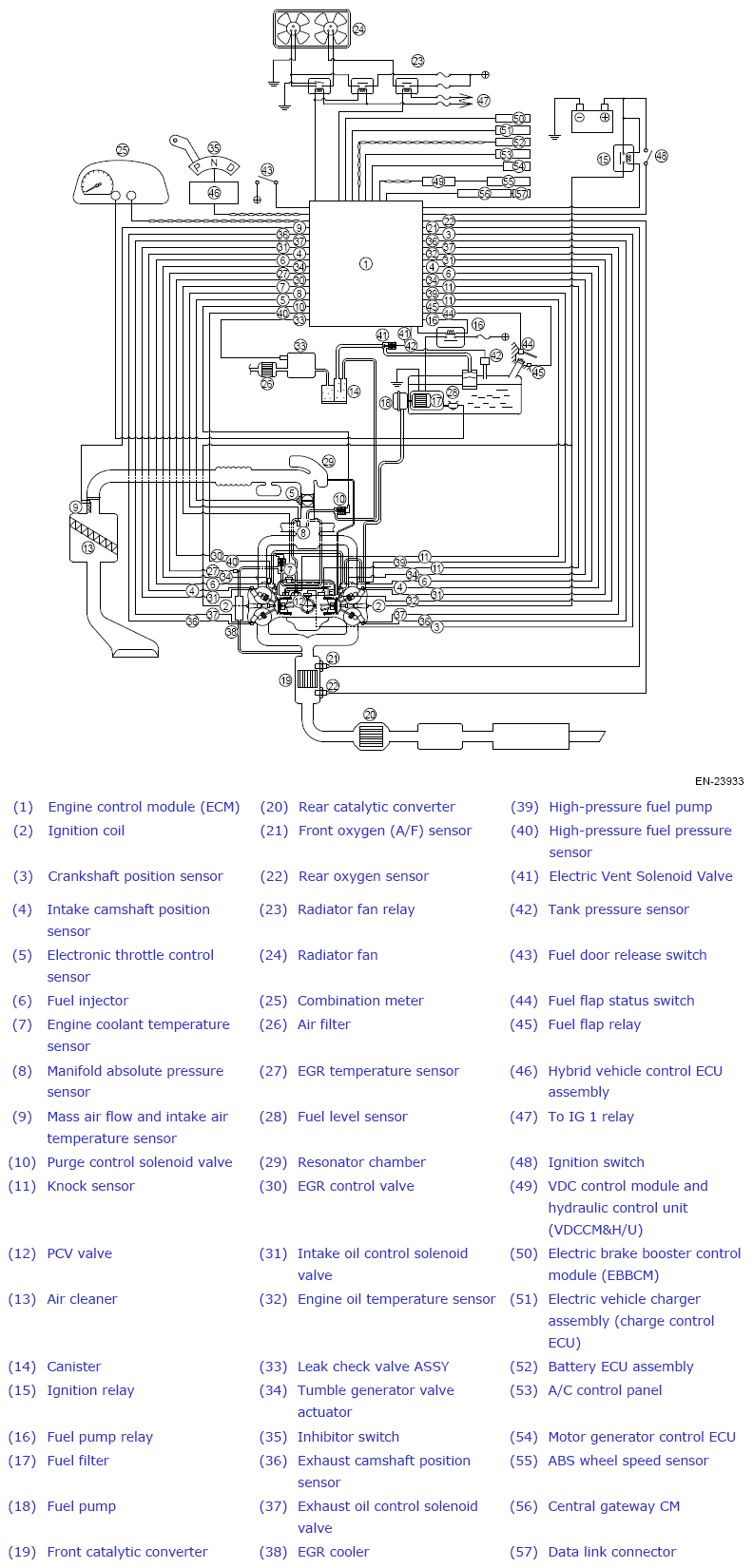

System Block Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
