Inspection Mode Al
| DTC | Item | Condition | Number of driving cycles on the detecting condition |
|---|---|---|---|
| P0400 | EGR "A" FLOW | - | 2 |
| P2004 | TGV CONTROL STUCK OPEN BANK 1 | Depress the accelerator to full throttle during acceleration. | 1 |
| P2005 | TGV CONTROL STUCK OPEN BANK 2 | 1 | |
| P2006 | TGV CONTROL STUCK CLOSED BANK 1 | 1 | |
| P2007 | TGV CONTROL STUCK CLOSED BANK 2 | 1 |
WARNING:
When performing inspection mode AL on a public road, pay sufficient attention to the traffic condition and give the highest priority to safe driving.
NOTE:
- Perform the inspection mode after warming up the engine except that the engine coolant temperature at engine start is specified.
- Even if switched to the hybrid battery save mode under the following conditions, the engine may not start.
- Power from HV battery is low and reduction in SOC is slight.
- SOC is recovering due to regeneration, etc.
- Check that the battery voltage is 12 V or more and fuel remains approx. half [20 - 40 L (5.3 - 10.6 US gal, 4.4 - 8.8 Imp gal)].
- Using the Subaru Select Monitor, perform the clear memory of [Engine]. Ref. to COMMON (DIAG)>CLEAR MEMORY .

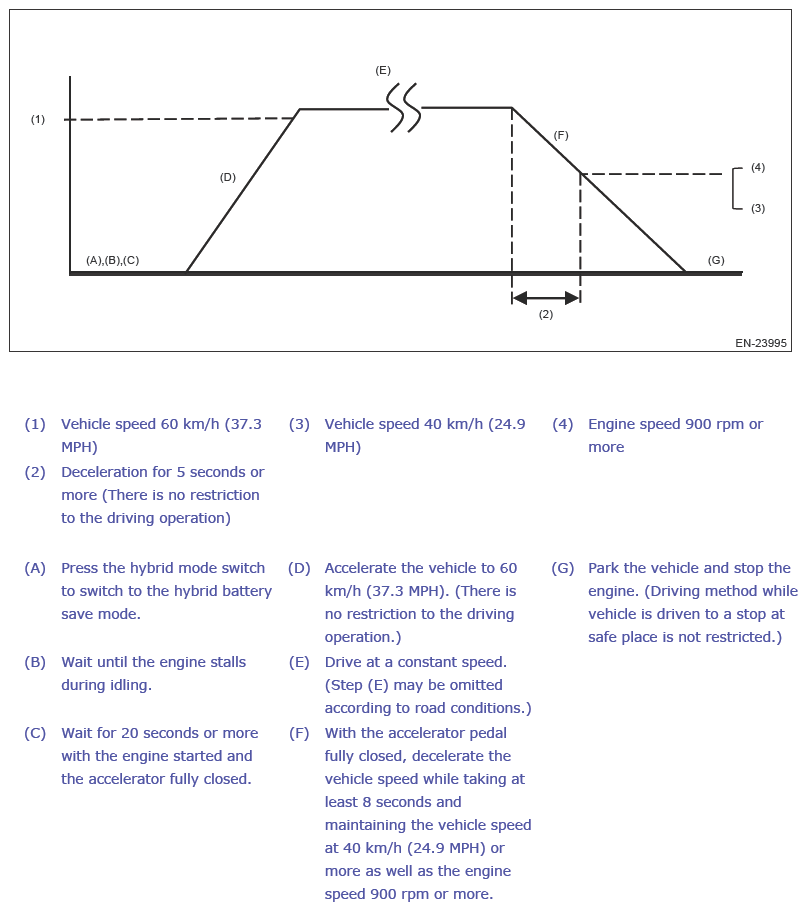

- Drive according to the drive pattern described below.NOTE: Perform (F) with the engine running.
- Read the temporary code using the Subaru Select Monitor or general scan tool. Ref. to COMMON (DIAG)>DIAGNOSTIC TROUBLE CODE (DTC) .
