Inspection Mode An

DTC	Item	Condition	Number of driving cycles on the detecting condition
P0068	MAP/MAF - THROTTLE POSITION CORRELATION	-	2
P0101	MASS OR VOLUME AIR FLOW SENSOR "A" CIRCUIT RANGE/PERFORMANCE	-	2
P219C	CYLINDER 1 AIR-FUEL RATIO IMBALANCE	-	2
P219D	CYLINDER 2 AIR-FUEL RATIO IMBALANCE	-	2
P219E	CYLINDER 3 AIR-FUEL RATIO IMBALANCE	-	2
P219F	CYLINDER 4 AIR-FUEL RATIO IMBALANCE	-	2

WARNING: When performing inspection mode AN on a public road, pay sufficient attention to the traffic condition and give the highest priority to safe driving.

NOTE:

Perform the inspection mode after warming up the engine except that the engine coolant temperature at engine start is specified.
Even if switched to the hybrid battery save mode under the following conditions, the engine may not start.
- Power from HV battery is low and reduction in SOC is slight.
- SOC is recovering due to regeneration, etc.

Check that the battery voltage is 12 V or more and fuel remains approx. half [20 - 40 L (5.3 - 10.6 US gal, 4.4 - 8.8 Imp gal)].
Using the Subaru Select Monitor, perform the clear memory of [Engine]. Ref. to COMMON (DIAG)>CLEAR MEMORY .

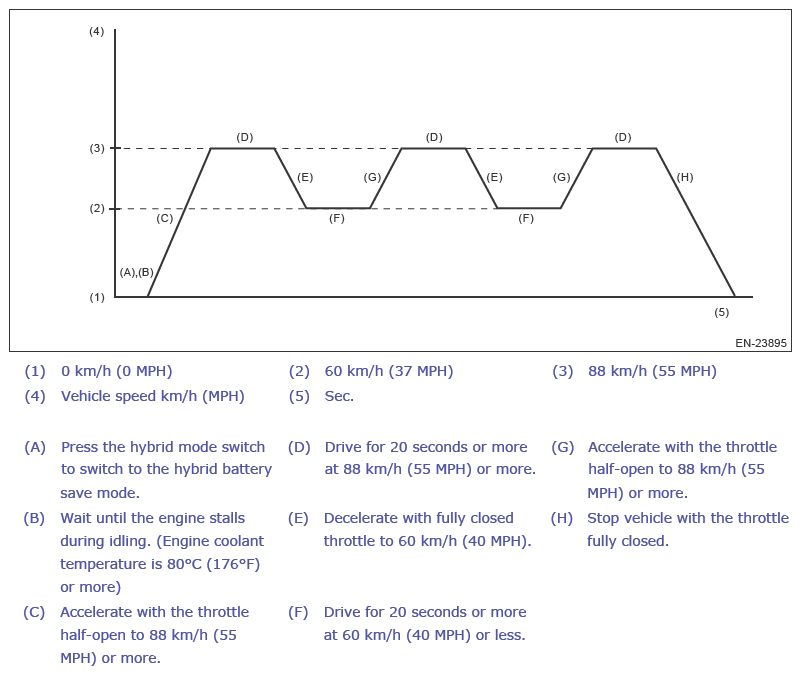

Drive according to the drive pattern described below.

Courtesy of SUBARU OF AMERICA, INC.
Read the temporary code using the Subaru Select Monitor or general scan tool. Ref. to COMMON (DIAG)>DIAGNOSTIC TROUBLE CODE (DTC) .
