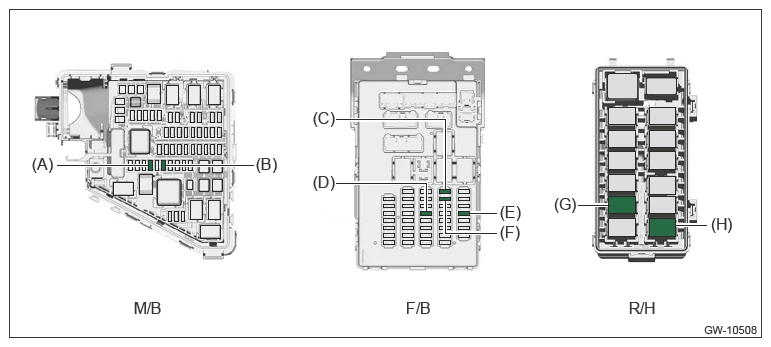

Relay And Fuse: Location
| Main fuse box (M/B) | Fuse 10 A (wiper deicer) | (A) |
| Fuse 25 A (rear defogger) | (B) | |
| Fuse & relay box (F/B) | Fuse 7.5 A (power window relay) | (C) |
| Fuse 7.5 A (remote control switch) | (D) | |
| Fuse 10 A (rain/light sensor) | (E) | |
| Fuse 15 A (rear defogger relay, wiper deicer relay) | (F) | |
| Relay holder (R/H) | Wiper deicer relay | (G) |
| Rear defogger relay | (H) |
NOTE:
For other related fuses, refer to WIRING SYSTEM>POWER SUPPLY CIRCUIT
.
