Example Of DTC Data Not Received

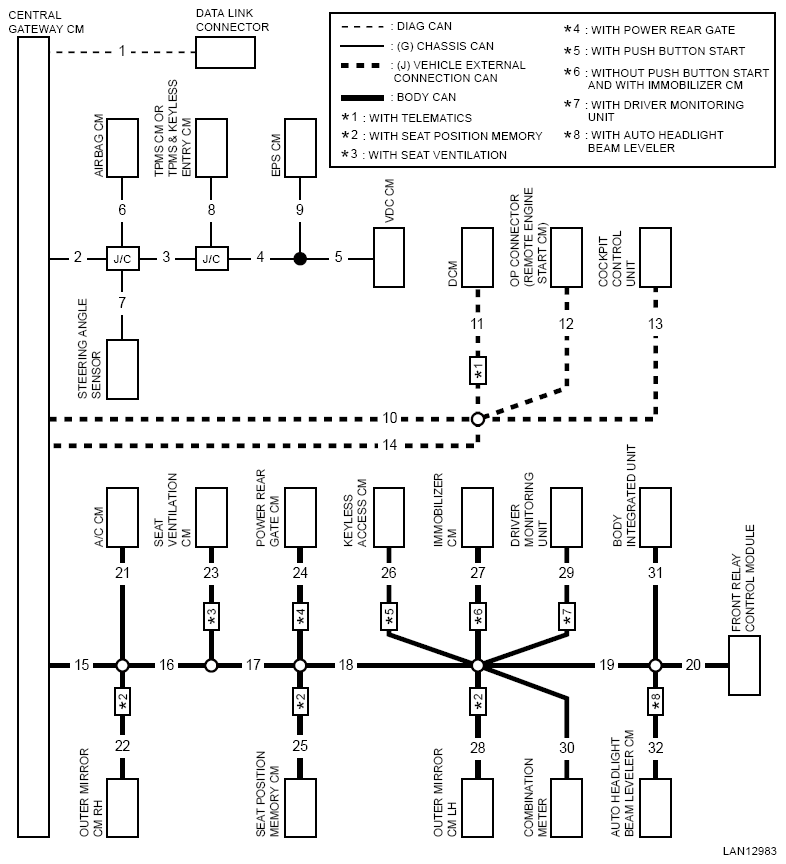

DIAG-CAN, (G) Chassis CAN, (J) Vehicle external connection CAN, Body CAN
Courtesy of SUBARU OF AMERICA, INC.

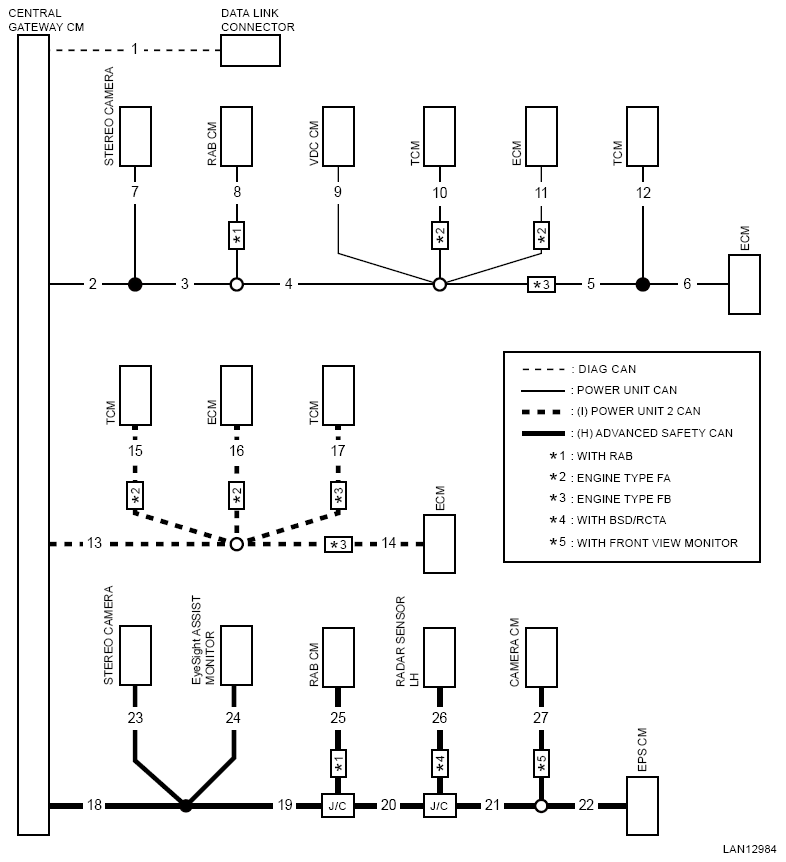

DIAG-CAN, Power unit CAN, (I) Power unit 2 CAN, (H) Advanced safety CAN
Courtesy of SUBARU OF AMERICA, INC.
No. 7 steering angle sensor vicinity
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
