Front Wiper

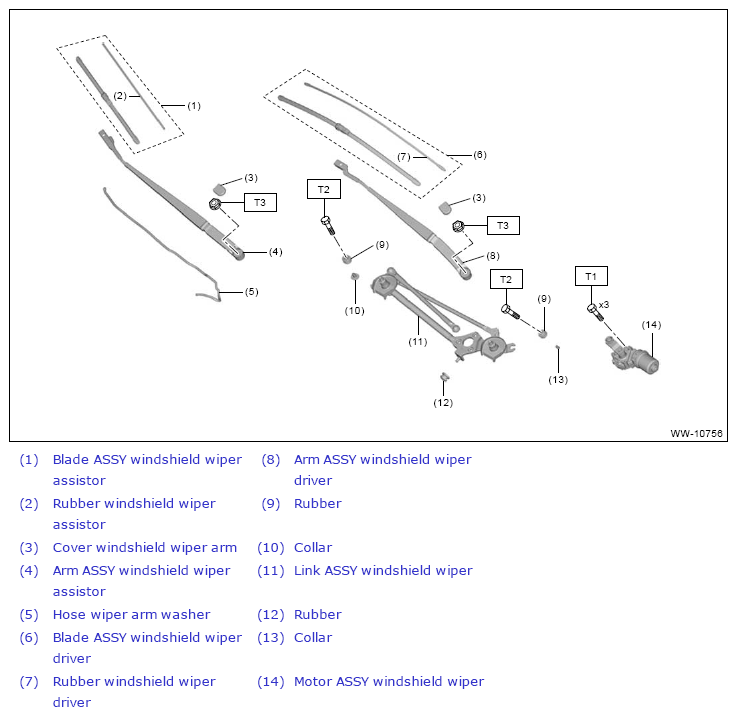

Fig 1: Front Wiper Components (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 5.4 (0.6, 4.0)
T2: 6 (0.6, 4.4)
T3: 22 (2.2, 16.2)
