OUTBACK model

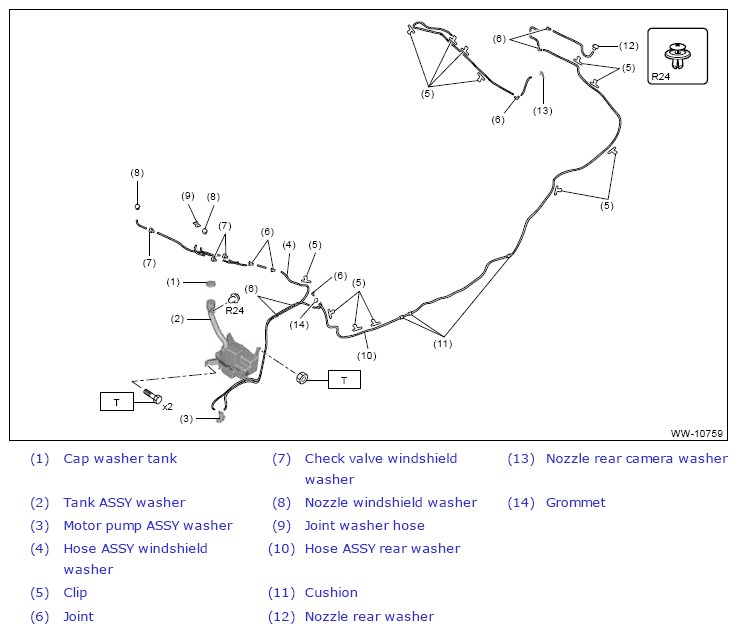

Fig 1: Window Washer Components (With Torque Specification) (Outback Model)
G13622881Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6 (0.6, 4.4)
