Seat Ventilation Control Module
CAUTION:
- Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Refer to AIRBAG SYSTEM>General Description>CAUTION .
- The load sensor of the occupant detection system is fixed to the cushion frame assembly. Never remove the load sensor from the cushion frame assembly. The following parts can be replaced as a single unit.
- Cushion pad
- Cushion cover
- Seat harness
- When the cushion frame assembly of the passenger's seat is replaced, the seat harness and load sensor are assembled. When replacing the cushion frame assembly, do not touch the load sensor to avoid electrical damage.
- When removing or replacing the seat, perform "Occupant Detection System Inspection" after installing the seat to check if the occupant detection system operates normally, Refer to PRE-DELIVERY INSPECTION>PRE-DELIVERY INSPECTION (PDI) PROCEDURE>SEAT .
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the passenger's seat. Refer to SEATS>Front Seat>REMOVAL .

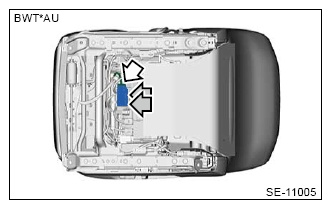

- Remove the seat ventilation Control Module.
