Section 7 (Engine Cooling System (2.4L)): Radiator: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • The engine coolant is pressurized when it is hot. Wait until engine coolant cools down before proceeding the work.
  • If the engine coolant is spilt over the engine, exhaust pipe or the under cover, completely wipe it off to avoid emission of smoke or causing a fire.
  1. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the V-belt covers.
    G13619537Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake duct. Refer to INTAKE (INDUCTION) (H4DOTC)>Air Intake Duct>REMOVAL .
  4. Remove the reservoir tank. Refer to COOLING (H4DOTC)>Reservoir Tank>REMOVAL .
  5. Drain engine coolant. Refer to COOLING (H4DOTC)>Engine Coolant>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  6. Remove the center exhaust pipe (front). Refer to EXHAUST (H4DOTC)>Center Exhaust Pipe>REMOVAL>CENTER EXHAUST PIPE (FRONT) .
  7. Disconnect the connector (A) and connector (B) from the radiator fan harness.
  8. Remove the clip which holds bulkhead wiring harness to the radiator fan shroud.
    G13620566Courtesy of SUBARU OF AMERICA, INC.
  9. Disconnect radiator outlet hose.
    G13620551Courtesy of SUBARU OF AMERICA, INC.
  10. Disconnect the radiator inlet hose.
    G13620568Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the cover UPR front.
    G13620569Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the bumper face front. Refer to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL>BUMPER FACE .
  13. Remove the clip (A), and remove the energy absorber plate UPR.
    G13620570Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the radiator upper bracket LH and radiator upper bracket RH.
    G13620571Courtesy of SUBARU OF AMERICA, INC.
  15. Using the ST, remove the bolts securing the lower side of condenser assembly to the radiator.

    Preparation tool:

    ST: SPECIAL TOOL CONDENSER (73099SG000)

    G13619305Courtesy of SUBARU OF AMERICA, INC.
  16. Remove the bracket condenser from the condenser assembly.
    NOTE: This procedure is required to prevent the radiator lower gasket from being damaged when removing the radiator.
    G13619306Courtesy of SUBARU OF AMERICA, INC.
  17. Remove the bolts which hold the upper side of condenser assembly to the radiator.
    G13620574Courtesy of SUBARU OF AMERICA, INC.
  18. Secure the condenser assembly to the vehicle using ropes or other items.
    NOTE: This procedure is required to prevent the condenser assembly from dropping off, and also the pipe evaporator cooling from being damaged.
    G13620575Courtesy of SUBARU OF AMERICA, INC.
  19. Remove the radiator and the radiator fan & fan motor assembly as an assembly.
    CAUTION:
    • Be careful not to damage the condenser assembly and radiator fins.
    • If a damaged fin is found, repair it using a thin screwdriver.
  20. Remove the radiator fan & fan motor assembly from the radiator. Refer to COOLING (H4DOTC)>Radiator Fan and Fan Motor Assembly>REMOVAL .
  21. Disconnect the radiator outlet hose (A), overflow hose (B) and radiator inlet hose (C) from the radiator.
    G13620576Courtesy of SUBARU OF AMERICA, INC.

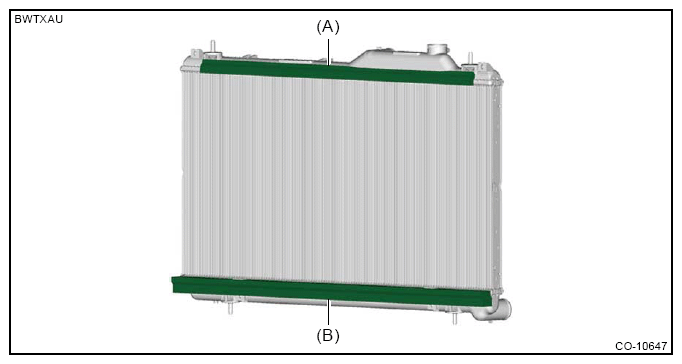

  22. Remove the radiator upper gasket (A) and radiator lower gasket (B) from the radiator.
    NOTE: Perform this procedure only when required.
    G13620577Courtesy of SUBARU OF AMERICA, INC.
  23. Remove the radiator lower cushion.
NOTE: Perform this procedure only when required.
G13620578Courtesy of SUBARU OF AMERICA, INC.
