Smart Rearview Camera Assembly

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel assembly rear gate UPR. Ref. to EXTERIOR/INTERIOR TRIM>Rear Gate Trim>REMOVAL .
  3. Remove the smart rearview camera assembly.
    CAUTION: Do not drop or apply any impact to the smart rearview camera because it is a precision equipment.

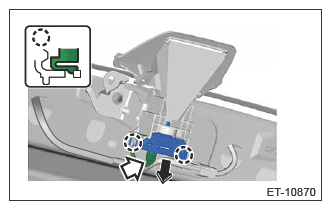

    1. Disconnect the connector.
    2. Disconnect the claws and then remove the smart rearview camera assembly.
      G13865748Courtesy of SUBARU OF AMERICA, INC.
      NOTE: While spreading the smart mirror camera cover, pull out the smart rearview camera assembly.

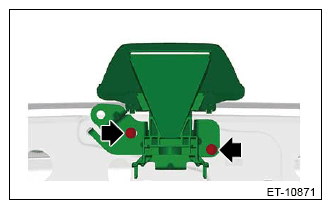

    3. Remove the bolts and remove the bracket smart mirror camera.
      G13865749Courtesy of SUBARU OF AMERICA, INC.

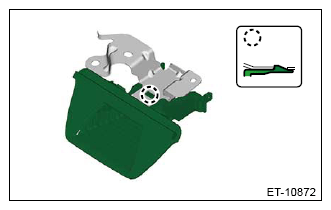

    4. Release the claws and remove the smart mirror camera cover.
G13865750Courtesy of SUBARU OF AMERICA, INC.
