Memory Height Switch: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .
  3. Remove the memory height switch.

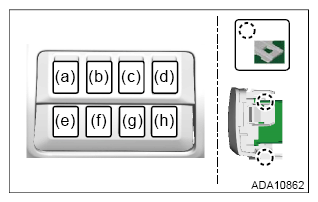

    1. Release the claws and remove the memory height switch (c).
    G12401637Courtesy of SUBARU OF AMERICA, INC.
