Power Rear Gate Control Module: Removal

CAUTION: When the power rear gate CM is replaced, the memory height function is initialized. Be sure to measure the power rear gate height before starting the operation and set the memory height function again after the operation.

Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

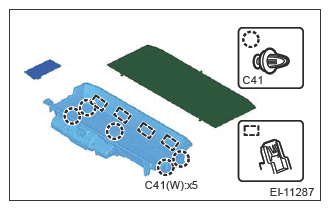

Remove the floor mat side, floor mat center, and box sub-trunk assembly.

Courtesy of SUBARU OF AMERICA, INC.
Remove the third-row seats. Ref. to SEATS>Third Seat>REMOVAL .
Remove the trim panel assembly apron RH. Ref. to EXTERIOR/INTERIOR TRIM>Rear Quarter Trim>REMOVAL .

Remove the power rear gate control module.

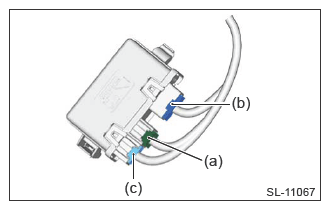

Disconnect the connectors in the following (a) - (c) order.

Courtesy of SUBARU OF AMERICA, INC.

NOTE: When the connectors are not disconnected in the sequence, a diagnosis code (DTC) may be detected.

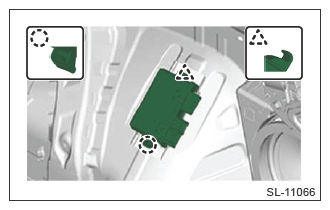

Release the lock and hook, and remove the power rear gate control module.

Courtesy of SUBARU OF AMERICA, INC.
