Power Seat Control Module

  1. Prior to starting work, check the following precautions, Ref. to SEATS>General Description>CAUTION .
  2. Raise the seat cushion by operating the switch.
  3. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  4. Remove the driver's seat from the vehicle.

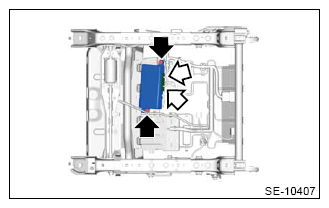

  5. Remove the ECM seat memory.
    1. Disconnect the connector.
    2. Remove the nuts and remove the ECM seat memory.
      G13201133Courtesy of SUBARU OF AMERICA, INC.
