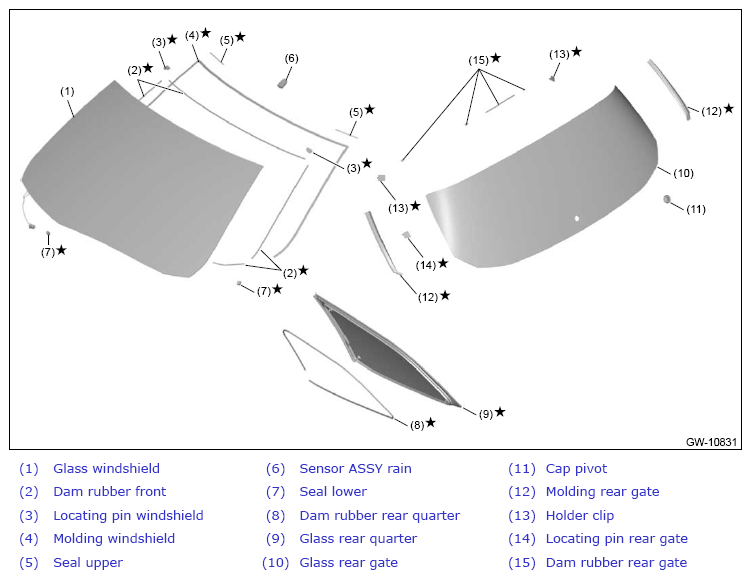

Fixed Glass

G13864786Courtesy of SUBARU OF AMERICA, INC.
NOTE: Base inner mirror and bracket rain sensor cannot be removed from the glass windshield.
