Rain Sensor: Removal
CAUTION:
- Be careful not to damage the glass windshield and bracket .
- Replace the glass windshield if the bracket is damaged .
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the stereo camera cover assembly. Ref. to EyeSight>Stereo Camera>REMOVAL .

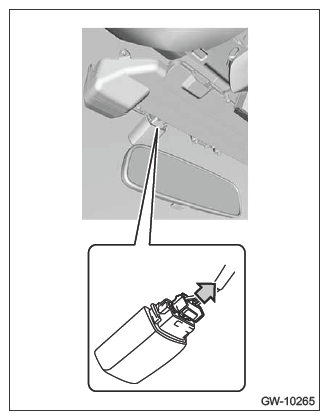

- Disconnect the connector.
- Remove the sensor assembly rain.

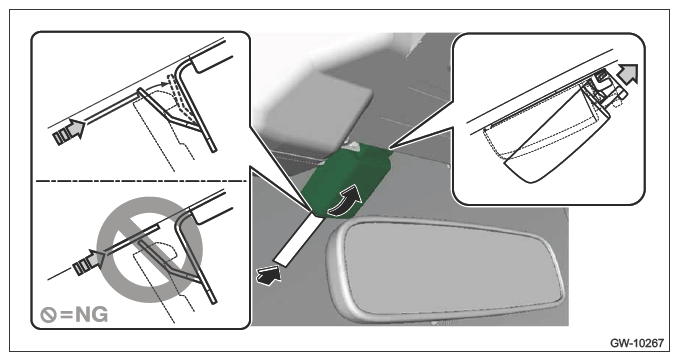

- Insert a 10 mm (0.39 in) or more wide and approx. 1 - 1.5 mm (0.04 - 0.06 in) thick plate from the slit of the sensor assembly rain, and release the lock of the bracket.
- Pull out the sensor assembly rain toward you, and remove it by sliding upwards.
