Radiator Fan Control Module (Main)

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

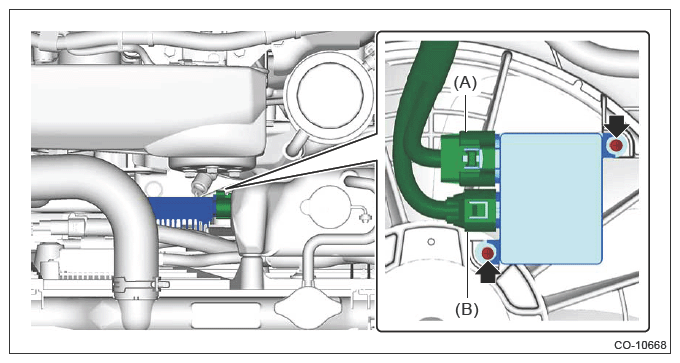

  2. Disconnect the connector (A) and connector (B), and remove the radiator fan control module (main).
G13862958Courtesy of SUBARU OF AMERICA, INC.
