Identification Number & Label Locations
The V.I.N. (Vehicle Identification Numbers) is used to classify the vehicle.

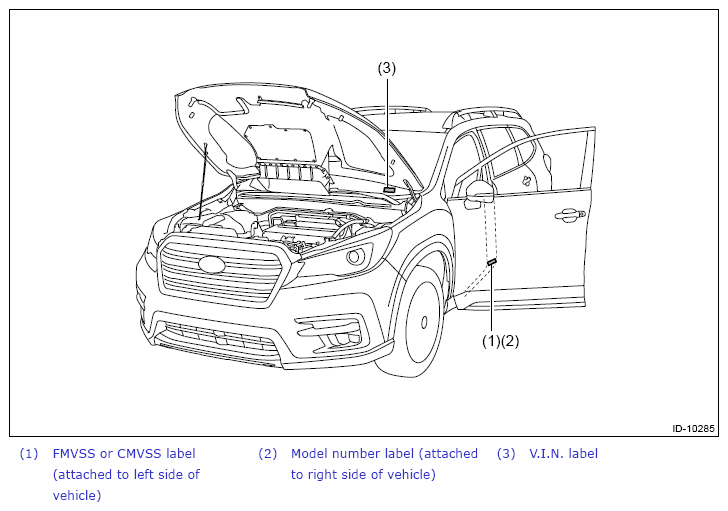

Positioning of the label for identification
Courtesy of SUBARU OF AMERICA, INC.

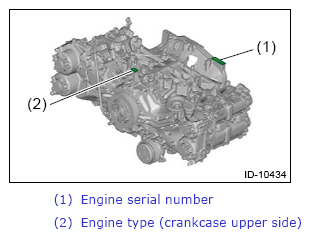

Engine
Courtesy of SUBARU OF AMERICA, INC.

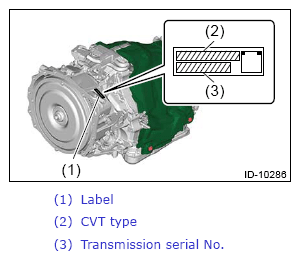

Automatic transmission
Courtesy of SUBARU OF AMERICA, INC.

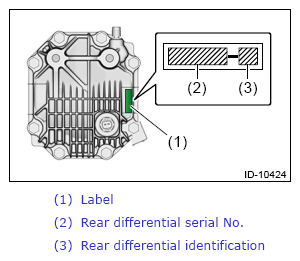

Rear differential
Courtesy of SUBARU OF AMERICA, INC.

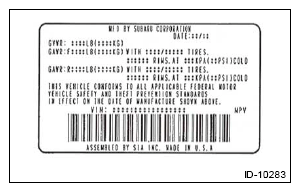

FMVSS label
For U.S.A.
Courtesy of SUBARU OF AMERICA, INC.

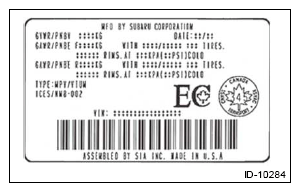

CMVSS label
For Canada
Courtesy of SUBARU OF AMERICA, INC.
Model number label
Courtesy of SUBARU OF AMERICA, INC.
