5 Door Model

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel - rear apron LH. (Except for hybrid model) Ref. to EXTERIOR/INTERIOR TRIM>REAR QUARTER TRIM>REMOVAL>5 DOOR MODEL (EXCEPT FOR HYBRID) .

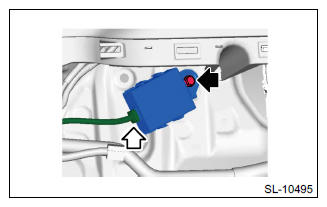

  3. Remove the keyless entry control module.
    1. Disconnect the connector.
    2. Remove the bolt and then remove the keyless entry control module.
    G11246366Courtesy of SUBARU OF AMERICA, INC.
