Cruise Control Command Switch: Inspection

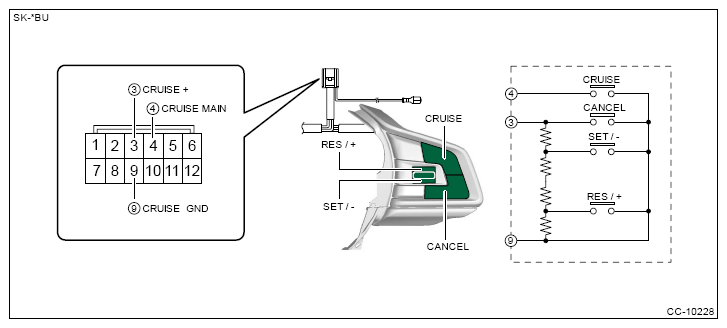

- Measure the resistance between connector terminals.
Preparation tool:
Circuit tester
Terminal No. Inspection conditions Standard 3 - 9 CANCEL SET/- RES/+ All OFF Approx. 4, 020 Ω CANCEL ON Less than 1 Ω SET/- ON Approx. 250 Ω RES/+ ON Approx. 1, 470 Ω 4 - 9 CRUISE OFF 3 MΩ or more ON Less than 1 Ω - Apply battery voltage between the connector terminals to check lighting condition of illumination inside the switch.CAUTION: When applying battery voltage, do not mix up the positive (+) side and the negative (-) side.
Incorrect polarity connection may cause LED damage inside the switch.Terminal No. Inspection conditions Specification 10 (+) - 11 (-) Apply battery voltage. Light ON - Replace the cruise control command switch if it is found defective.
