Front Regulator and Motor Assembly: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the trim panel front door. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>FRONT DOOR .
  3. Remove the front sealing cover. Ref. to EXTERIOR BODY PANELS>SEALING COVER>REMOVAL>FRONT SEALING COVER .
  4. Remove the glass assembly front door. Ref. to GLASS/WINDOWS/MIRRORS>FRONT DOOR GLASS>REMOVAL>FRONT DOOR GLASS .
  5. Remove the regulator & motor assembly front.

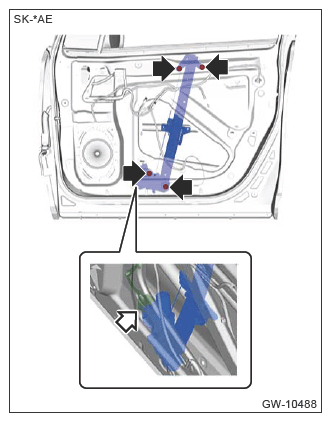

    1. Disconnect the connector and clamp.
    2. Remove the bolts, and then remove the regulator & motor assembly front.
G13226597Courtesy of SUBARU OF AMERICA, INC.
