Combination Meter: Disassembly

CAUTION:

Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.
Be sure not to touch the meter indicator needle.
Because LED components are used for all of warning lights and indicator lights, they are not removable from the combination meter assembly.

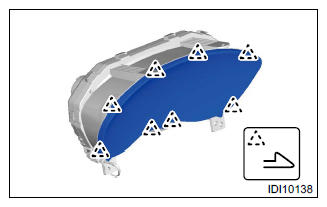

Remove the glass combination meter.
1. Release the claws, and then remove the glass combination meter.
Courtesy of SUBARU OF AMERICA, INC.

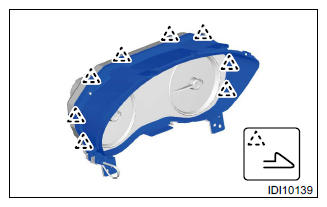

Remove the visor combination meter.
1. Release the claws, and then remove the visor combination meter.
Courtesy of SUBARU OF AMERICA, INC.
