PCV System 1

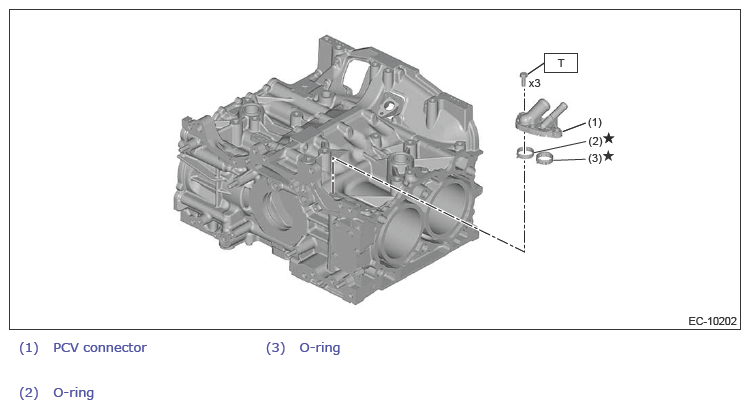

Fig 1: PCV System 1 Components

G13867666

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6.4 (0.7, 4.7)
