Passenger's Airbag Module

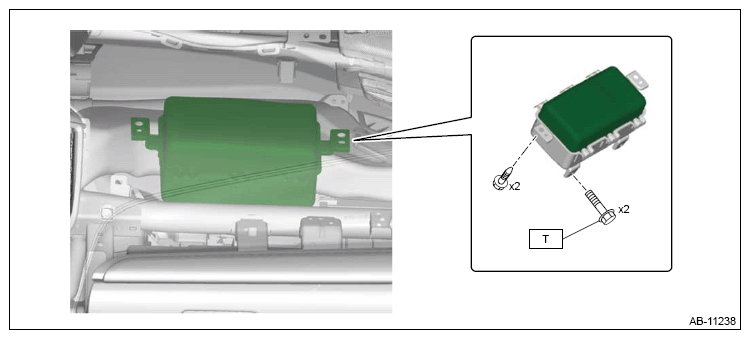

Fig 1: Passenger's Airbag Module
G13869778Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: Nm (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
