Curtain Airbag Module

  1. Turn the ignition switch to OFF.
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the trim panel sub assembly.
  4. Disconnect the curtain airbag module connector. Ref. to AIRBAG SYSTEM>AIRBAG CONNECTOR>PROCEDURE .
  5. Activate the curtain airbag module.

    Preparation tool:

    ST1: AIRBAG DEPLOYMENT TOOL (98299PA030)

    ST2: TEST HARNESS ADAPTER D (98299SA010)

    1. Short the terminal to the alligator clip furnished as ST1.
      CAUTION: ST1 should be kept shorted on the terminals until just before activation of airbag module.
    2. Connect the ST1 with ST2.
      G13951853Courtesy of SUBARU OF AMERICA, INC.
    3. Connect the ST2 to the curtain airbag module.
      • Sedan model
        G13951854Courtesy of SUBARU OF AMERICA, INC.
      • OUTBACK model

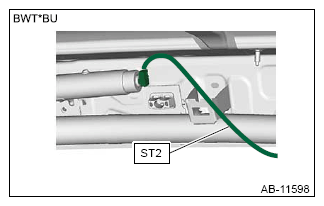

      G13951855Courtesy of SUBARU OF AMERICA, INC.
    4. Make sure there is no one inside the vehicle.
    5. Extend the wiring of ST1 to the limit, and close all the windows and sunroof completely.
      G13951856Courtesy of SUBARU OF AMERICA, INC.
    6. Move the battery at least 5 m (16 ft) from the vehicle, and confirm safety in the area.
    7. Connect the ST1 alligator clip to the battery negative (-) terminal.
    8. Connect the other cable of ST1 to the battery positive (+) terminal, and activate the airbag module.
    CAUTION:
    • After activation, the airbag module will be extremely hot. Let it cool down for at least 40 minutes in an area with no one around.
    • Do not expose the activated airbag module to water.
    G13951857Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the bolts and clips, and remove the curtain airbag module.
    • Sedan model

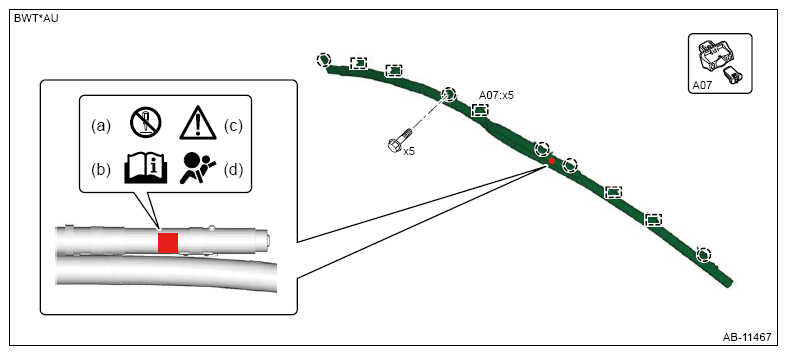

      G13951858Courtesy of SUBARU OF AMERICA, INC.
    • OUTBACK model

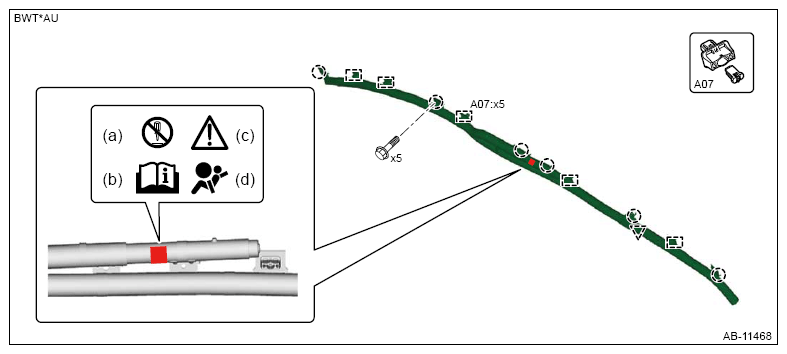

    G13951859Courtesy of SUBARU OF AMERICA, INC.
  7. Place the activated airbag module in a sealed vinyl bag, then discard.
NOTE: When necessary, fold the fabric part of airbag into three or four sections, rope and seal in a vinyl bag.
G13951860Courtesy of SUBARU OF AMERICA, INC.
