Oil Pump Chain: Disassembly

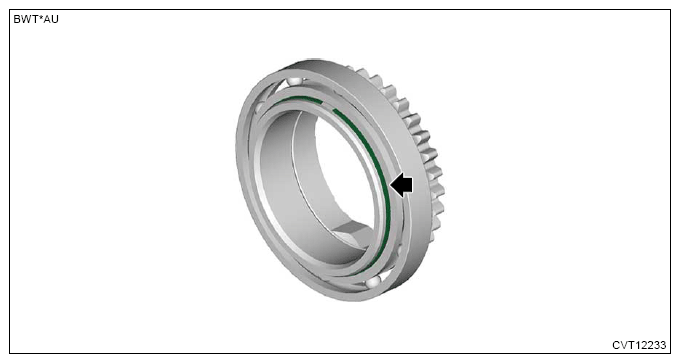

Remove the snap ring.

Courtesy of SUBARU OF AMERICA, INC.

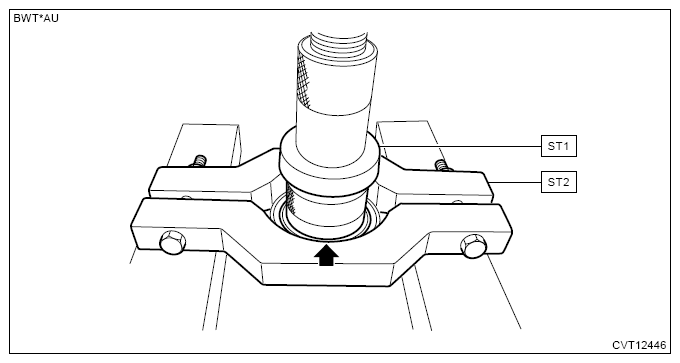

Remove the ball bearing using ST1, ST2 and a press.
CAUTION: Be careful not to drop the drive sprocket.

Preparation tool:

ST1: HOUSING BUSHING INSTALLER AND REMOVER (927720000)

ST2: REMOVER (498077600)

Courtesy of SUBARU OF AMERICA, INC.
