•Outback Model

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL>BUMPER FACE .
  3. Remove the front view camera assembly.
    CAUTION: Do not drop or apply any impact to the front view camera assembly because it is a precision equipment.

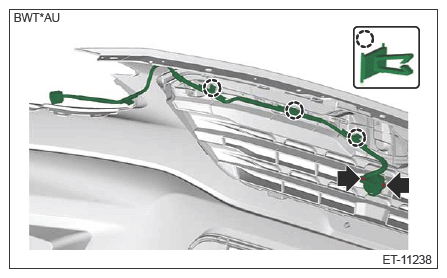

    1. Remove the cable clamps.
    2. Remove the screws and remove the front view camera assembly.
G13952123Courtesy of SUBARU OF AMERICA, INC.
