Cockpit Display: Disassembly

  1. Remove the center information display.
    1. Release the clips and disconnect the connectors.

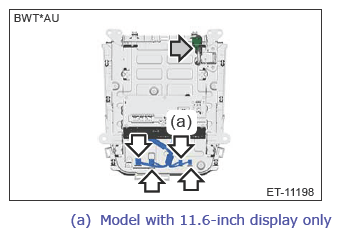

      G13952074Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the screws and remove the center information display.
      NOTE: Remove the screws on LH side in the same procedure as on the RH side.

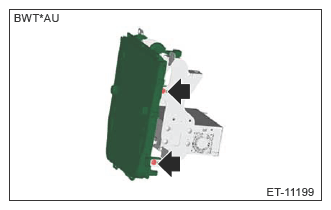

      G13952075Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the switch hazard. Ref. to LIGHTING SYSTEM>HAZARD SWITCH>REMOVAL .
  3. Disconnect the connectors, and remove the cord assembly.

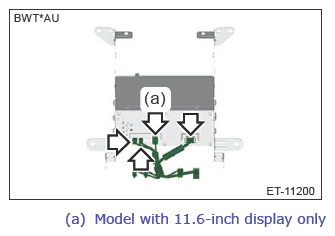

    G13952076Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the screws and remove the unit bracket from the cockpit control module.
    NOTE: Remove the screws on LH side in the same procedure as on the RH side.

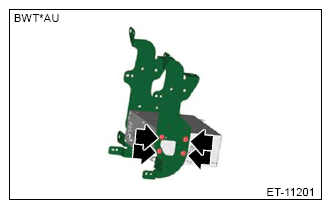

    G13952077Courtesy of SUBARU OF AMERICA, INC.
