Deck Assembly
CAUTION:
Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM".
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY
.NOTE:
- Release the shift lock and shift the select lever to the "N" position. Ref. to CONTROL SYSTEMS>SELECT LEVER>REMOVAL .
- On power seat models, move the front seat all the way forward before disconnecting the ground terminal from the battery sensor.
- Remove the cover assembly front and the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
- Remove the deck assembly. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>DISASSEMBLY .
- Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
- Remove the visor assembly. Ref. to INSTRUMENTATION/DRIVER INFO>COMBINATION METER>REMOVAL .
- Remove the driver monitoring unit assembly. Ref. to INSTRUMENTATION/DRIVER INFO>DRIVER MONITORING UNIT>REMOVAL
.NOTE: For the model without driver monitoring system, remove the cover center UPR in the same procedure as for the driver monitoring unit assembly.
- Remove the grip and boot. Ref. to CONTROL SYSTEMS>SELECT LEVER>REMOVAL .
- Remove the cover assembly front. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
- Remove the ornament panel mid passenger and the center information display assembly. Ref. to ENTERTAINMENT AND MONITORING>COCKPIT DISPLAY>REMOVAL>DISPLAY ASSEMBLY .
- Remove the cover center side RH. Ref. to EXTERIOR/INTERIOR TRIM>CENTER CONSOLE>REMOVAL .

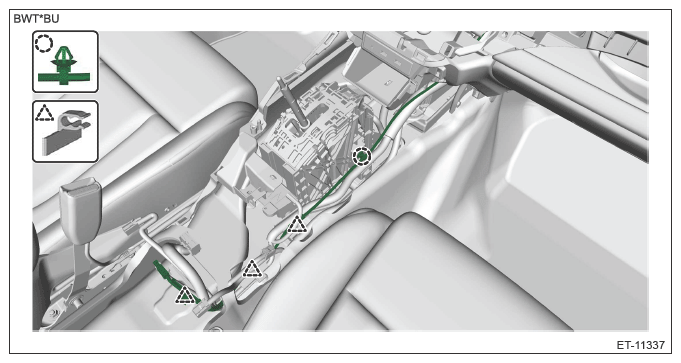

- Release the cord clip and the cord clamp, and remove the deck cord.
