Wiper Blade: Installation: Front

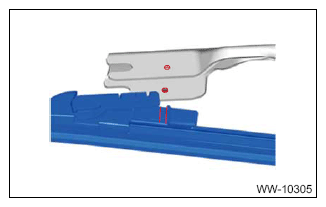

  1. Align the protrusion section of arm inner and the groove on the blade side.
    G13952024Courtesy of SUBARU OF AMERICA, INC.
  2. Slide until the lock button is locked and install the blade assembly.
    NOTE: After installation, confirm that the lock button is locked securely.
G13952025Courtesy of SUBARU OF AMERICA, INC.
