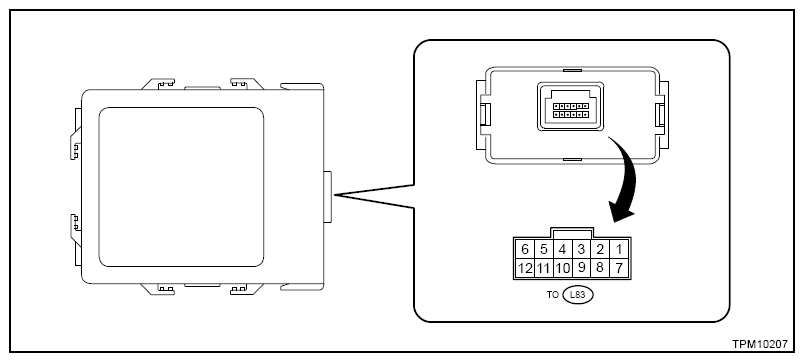

Electrical Specification
| Terminal No. | Item | Measuring condition | Standard |
|---|---|---|---|
| (L83) No. 1 | CAN-L | Digital signal; cannot be measured | - |
| (L83) No. 2 | CAN-H | Digital signal; cannot be measured | - |
| (L83) No. 3 | - | - | - |
| (L83) No. 4 | - | - | - |
| (L83) No. 5 | - | - | - |
| (L83) No. 6 ←→ Chassis ground | Ignition power supply | When ignition switch is ON | 9 - 16 V |
| (L83) No. 7 ←→ Chassis ground | GND | Always | 1 Ω or less |
| (L83) No. 8 | - | - | - |
| (L83) No. 9 | - | - | - |
| (L83) No. 10 | - | - | - |
| (L83) No. 11 | - | - | - |
| (L83) No. 12 ←→ Chassis ground | Battery power supply | Always | 9 - 16 V |
