Battery Cable Assembly: Installation
WARNING: This page is about a different variant/trim than selected.

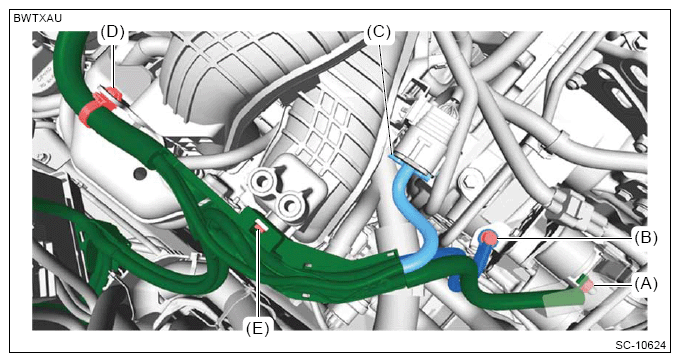

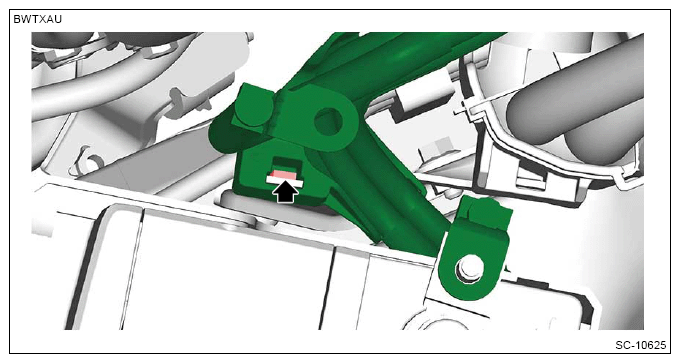

- Set the battery cable assembly, and secure the battery cable assembly to the bracket with claw.
- Secure the battery cable assembly with the claw (E) and clip (D).
- Connect the connector (C).
- Connect the ground terminal (B) to the cable stay.
Tightening torque: :
14 N.m (1.4 kgf-m, 10.3 ft-lb)
- Connect the terminal (A) to the starter.
Tightening torque: :
11 N.m (1.1 kgf-m, 8.1 ft-lb)

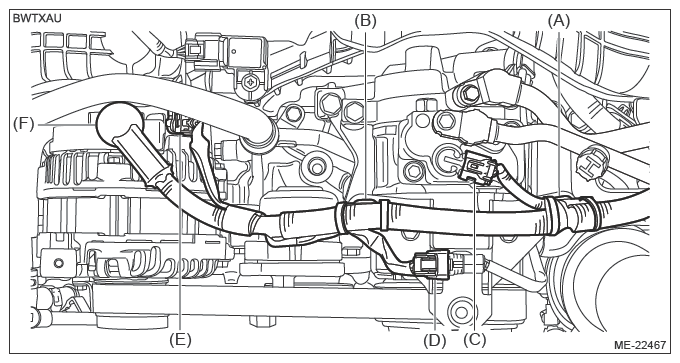

- Secure the battery cable assembly with the clip (A) and clip (B).
- Connect the connector (C), connector (D), connector (E), and the terminal (F).
Tightening torque: :
15.5 N.m (1.6 kgf-m, 11.4 ft-lb)
- Install the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>INSTALLATION
.

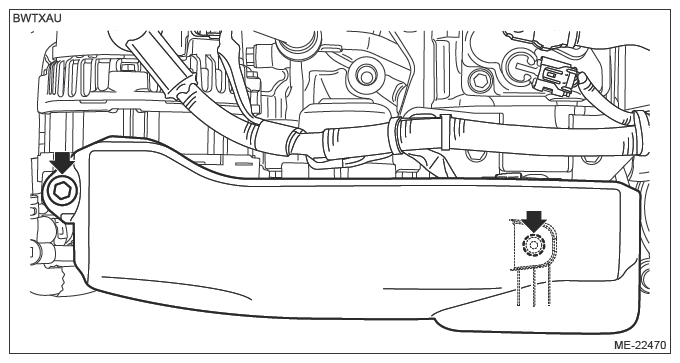

- Install the V-belt cover.NOTE:
- Check the grommet for peel-off or disengagement.
- Be careful not to deform the bracket during installation.
Tightening torque: :
7 N.m (0.7 kgf-m, 5.2 ft-lb)

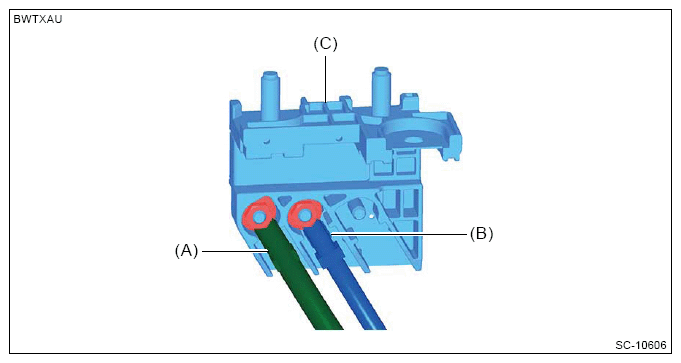

- Connect the terminal (B) and the terminal (A) to the slow blow fuse (C).
Tightening torque: :
1.5 N.m (0.6 kgf-m, 4.1 ft-lb)

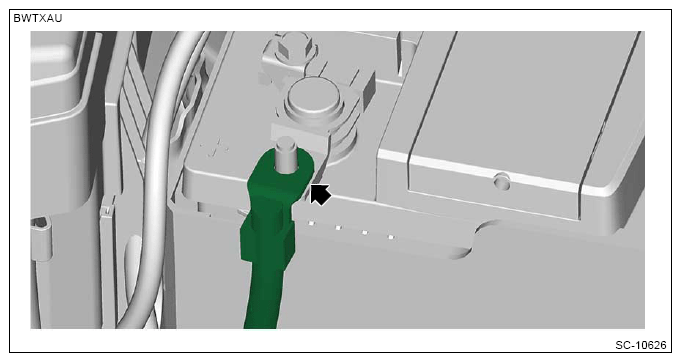

- Set the terminal of battery cable assembly to the terminal base.

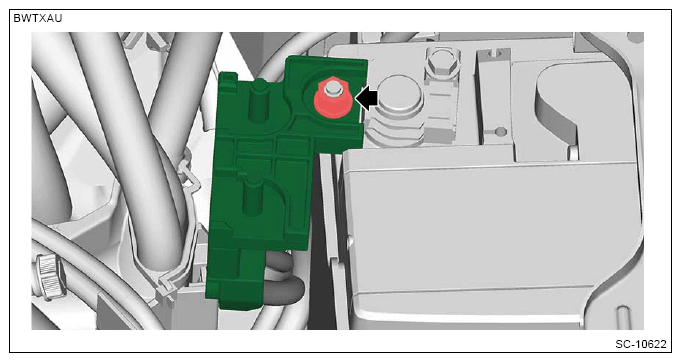

- Connect the slow blow fuse to the terminal base.
Tightening torque: :
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

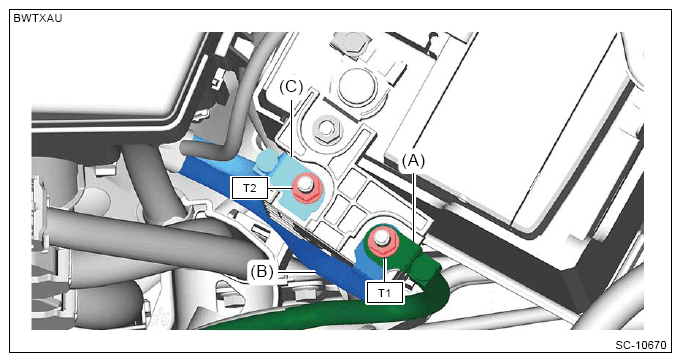

- Connect the terminal (C), terminal (B) and terminal (A).
Tightening torque: :
T1: 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
T2: 14 N.m (1.4 kgf-m, 10.3 ft-lb)

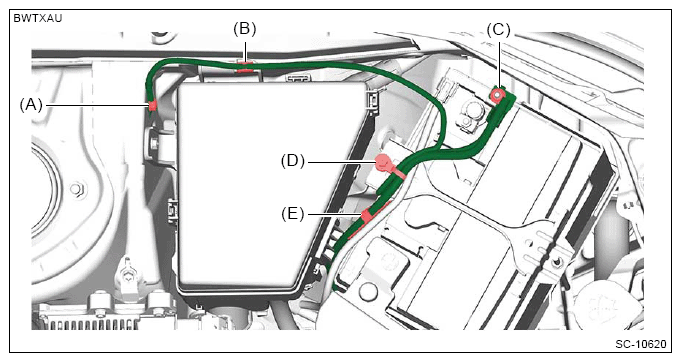

- Install the battery cable assembly to the clip (E).
- Install the battery cable holder (D), and connect the ground terminal (C).
Tightening torque: :
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
- Install the ground cable to the clip (B), and connect the ground terminal (A).
Tightening torque: :
13 N.m (1.3 kgf-m, 9.6 ft-lb)
