Battery Cable Assembly: Removal

WARNING: This page is about a different variant/trim than selected.

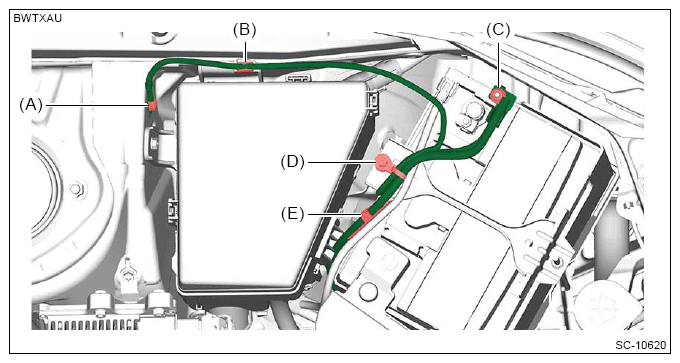

  1. Disconnect the ground terminal (A) and remove the ground cable from the clip (B).
  2. Disconnect the ground terminal (C) and remove the battery cable holder (D).
  3. Remove the battery cable assembly from the clip (E).
    G13949472Courtesy of SUBARU OF AMERICA, INC.

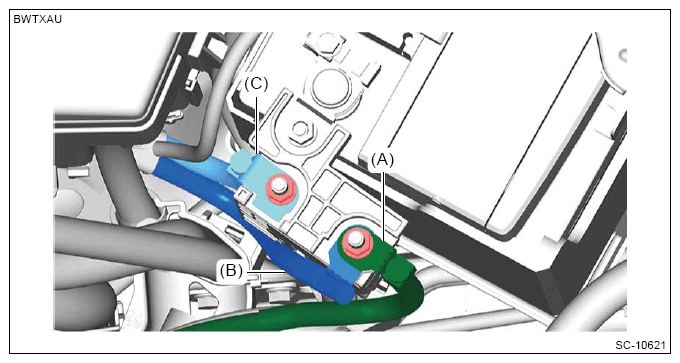

  4. Disconnect the terminal (A), terminal (B) and terminal (C).
    G13949473Courtesy of SUBARU OF AMERICA, INC.

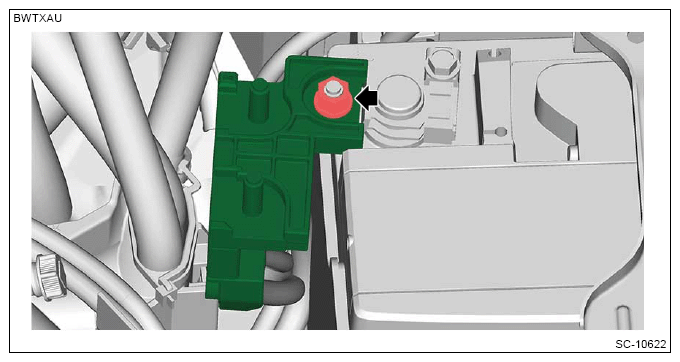

  5. Disconnect the slow blow fuse from the terminal base.
    G13949474Courtesy of SUBARU OF AMERICA, INC.

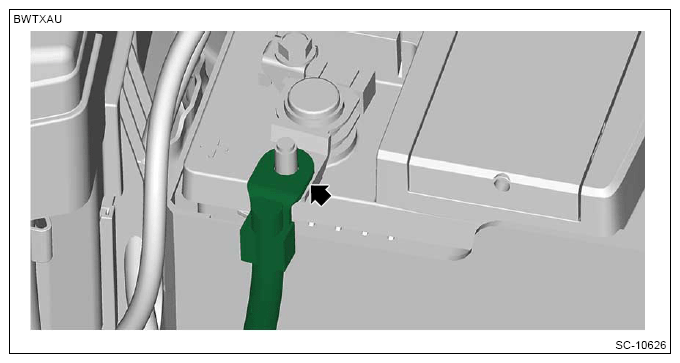

  6. Remove the terminal of battery cable assembly from the terminal base.
    G13949475Courtesy of SUBARU OF AMERICA, INC.

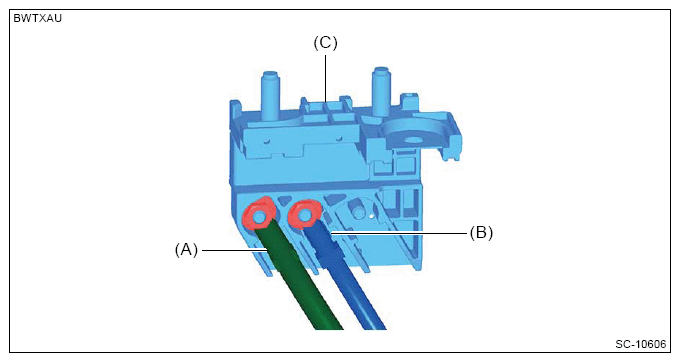

  7. Disconnect the terminal (A) and the terminal (B), and remove the slow blow fuse (C).
    NOTE: Perform this procedure only when required.
    G13949476Courtesy of SUBARU OF AMERICA, INC.

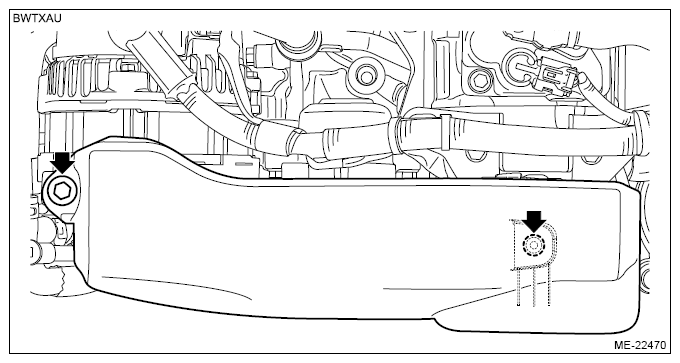

  8. Remove the V-belt covers.
    G13949477Courtesy of SUBARU OF AMERICA, INC.

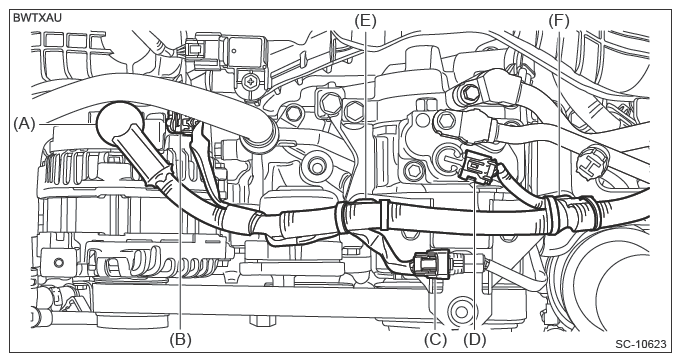

  9. Disconnect the terminal (A), connector (B), connector (C) and connector (D).
  10. Remove the clip (E) and clip (F) securing the battery cable assembly.
    G13949478Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL .

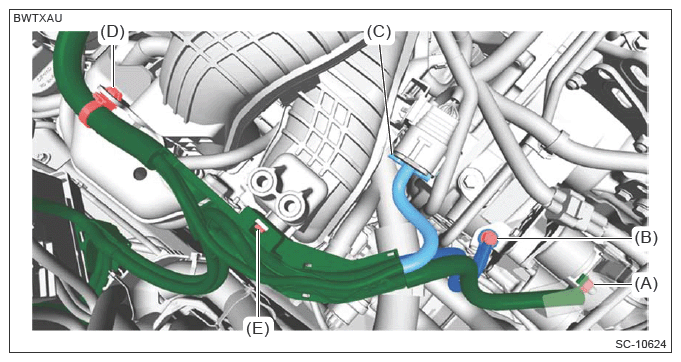

  12. Disconnect the terminal (A), ground terminal (B) and connector (C).
    CAUTION: In order to prevent damaging the ground terminal, fix the ground terminal when loosing the bolt, and avoid the part from rotating together while loosening the bolt.
  13. Remove the clip (D) securing battery cable assembly and release the claw (E).
    G13949479Courtesy of SUBARU OF AMERICA, INC.

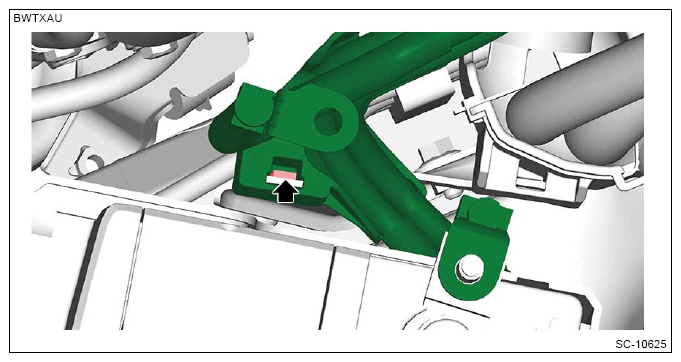

  14. Disengage the claw securing the battery cable assembly to the bracket, and remove the battery cable assembly.
    G13949480Courtesy of SUBARU OF AMERICA, INC.
