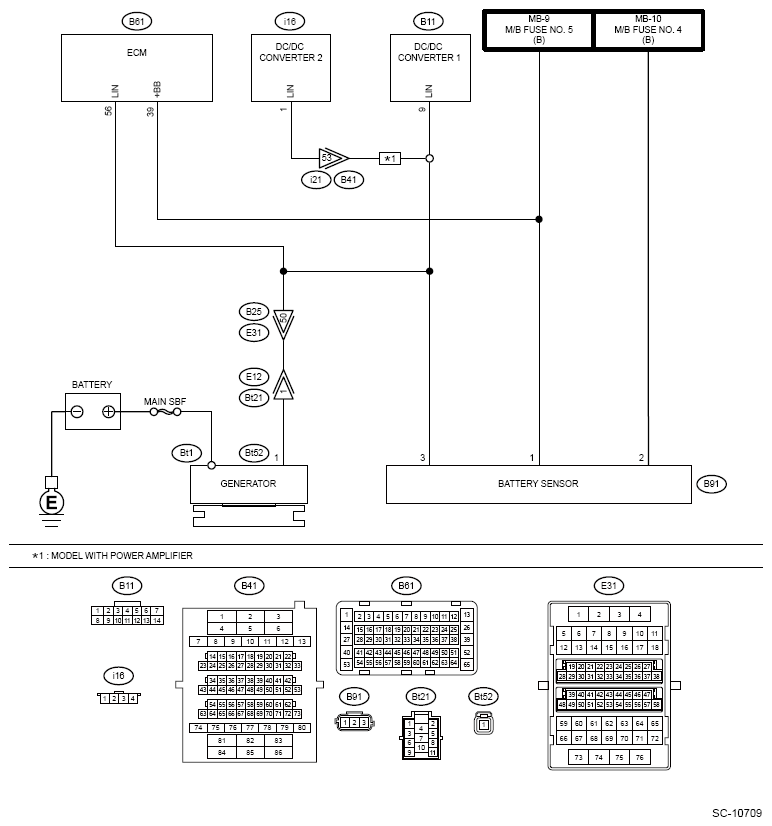

Charging System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
G13949440Courtesy of SUBARU OF AMERICA, INC.
