Battery Sensor
WARNING:
This page is about a different variant/trim than selected.

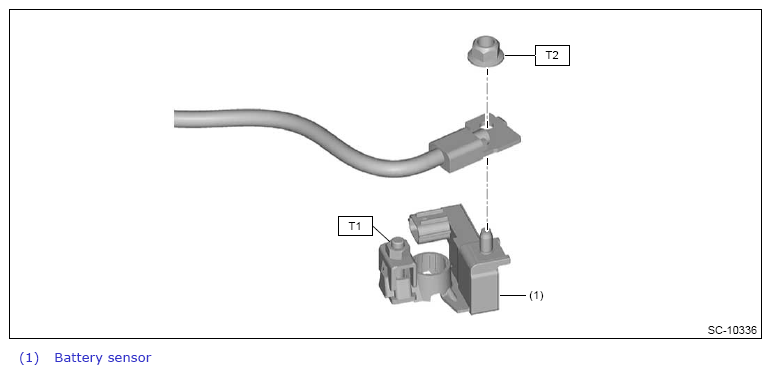

Fig 1: Battery Sensor
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 3.4 (0.3, 2.5)
T2: 7.5 (0.8, 5.5)
Courtesy of SUBARU OF AMERICA, INC.
