Section 1 (Engine Starting System & Charging System (2.4L)): Generator: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>REMOVAL .
- Remove the V-belts. Ref. to MECHANICAL (H4DOTC)>V-BELT>REMOVAL>V-BELT .

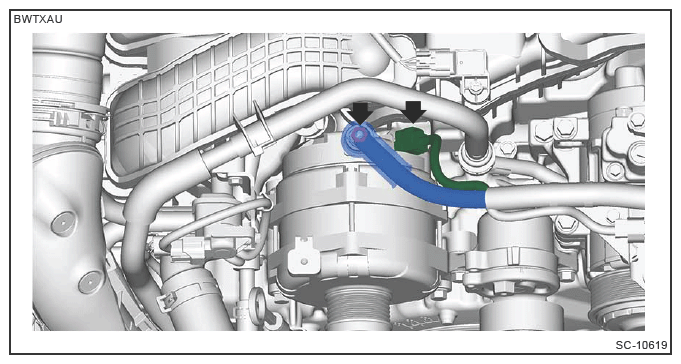

- Disconnect the connector and terminal B.
- Remove the generator.
