Inrush Current Reduction Relay: Inspection
WARNING: This page is about a different variant/trim than selected.
- Check that the ICR relay has no deformation, cracks or other damages.

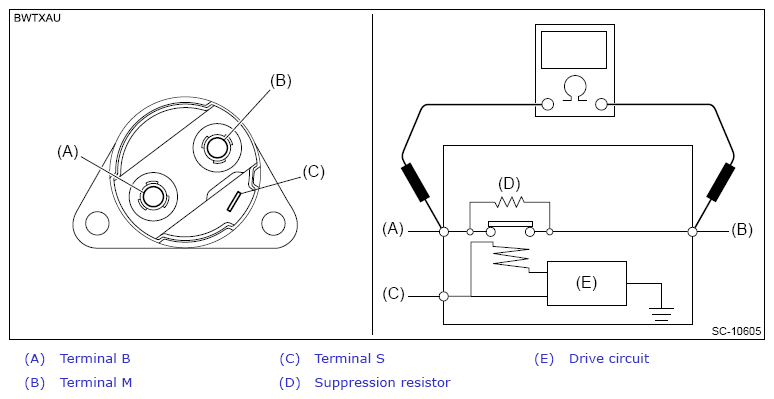

- Measure the resistance between the ICR relay terminals.
CAUTION:
To prevent burning and damaging the ICR relay drive circuit, take care not to apply the battery voltage to the ICR relay S terminal.
| Terminals | Standard |
|---|---|
| (A) - (B) | Less than approx. 1Ω |
