Inrush Current Reduction Relay: Installation

WARNING: This page is about a different variant/trim than selected.

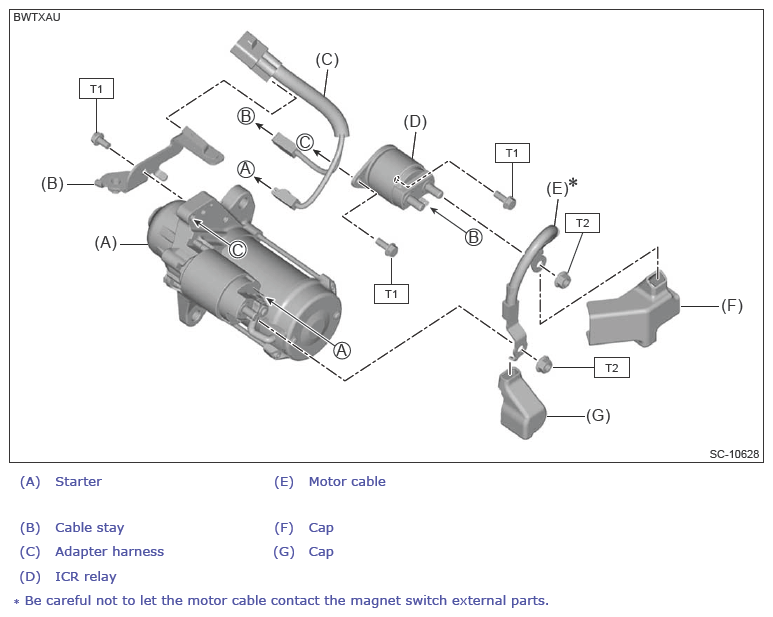

Fig 1: Starter Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 11 (1.1, 8.1)

Install the ICR relay.
Install the motor cable.
Install the cable stay and adapter harness.
Install the starter, Ref. to STARTING/CHARGING SYSTEMS (H4DOTC)>STARTER>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
