Inrush Current Reduction Relay: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the starter. Ref. to STARTING/CHARGING SYSTEMS (H4DOTC)>STARTER>REMOVAL .

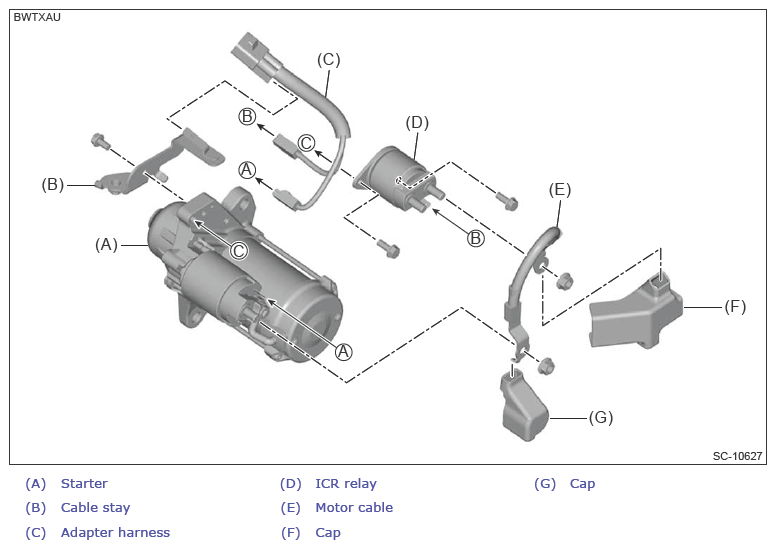

- Remove the adapter harness and cable stay.
- Remove the motor cable.
- Remove the ICR relay.
