Rocker Cover

WARNING: This page is about a different variant/trim than selected.

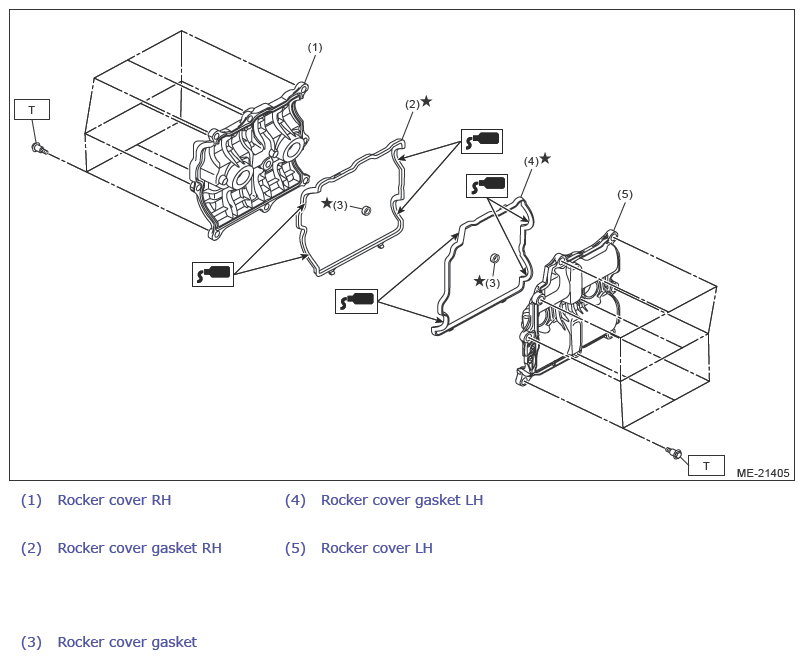

Fig 1: Rocker Cover Components
G13948752Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T:  Ref. to MECHANICAL (H4DOTC)>ROCKER COVER>INSTALLATION .
