Section 10 (Engine Mechanical System (2.4L))
>>
General Description
>>
Components With Torque Specifications
>>
Valve Assembly
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

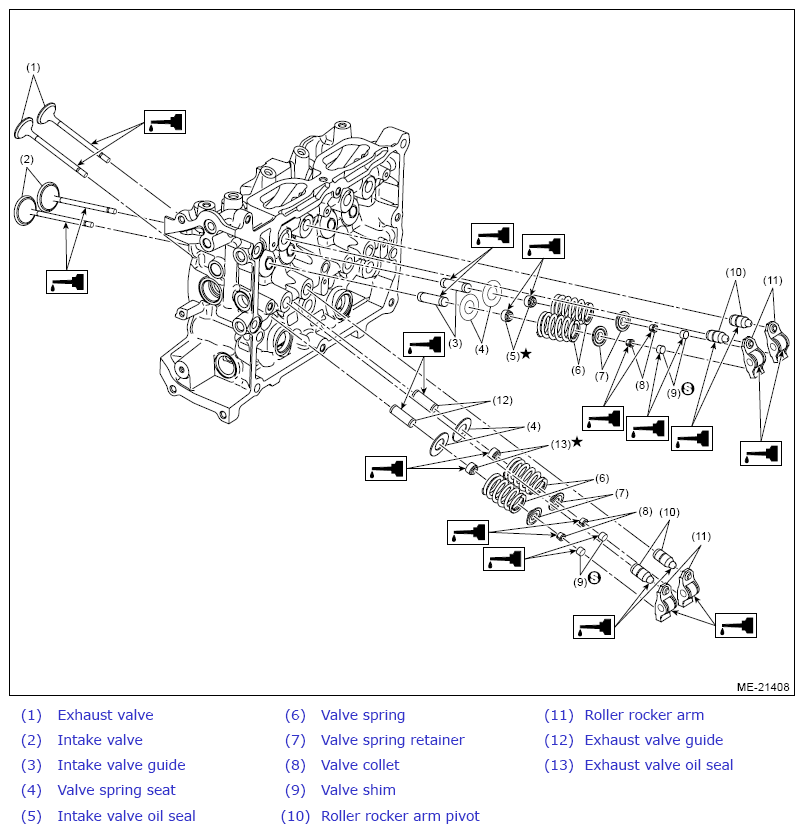

Valve Assembly
WARNING:
This page is about a different variant/trim than selected.
Courtesy of SUBARU OF AMERICA, INC.
