Oil Pump
WARNING:
This page is about a different variant/trim than selected.

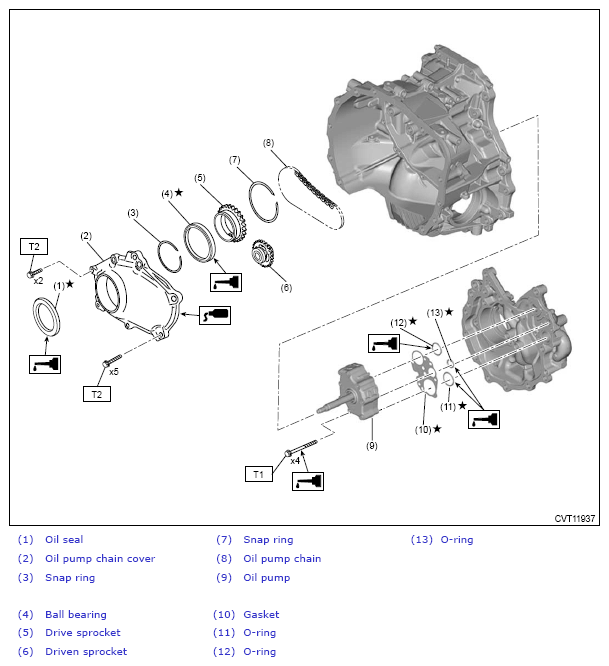

Fig 1: Oil Pump Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 8.5 (0.9, 6.3)
T2: 24 (2.4, 17.7)
Courtesy of SUBARU OF AMERICA, INC.
