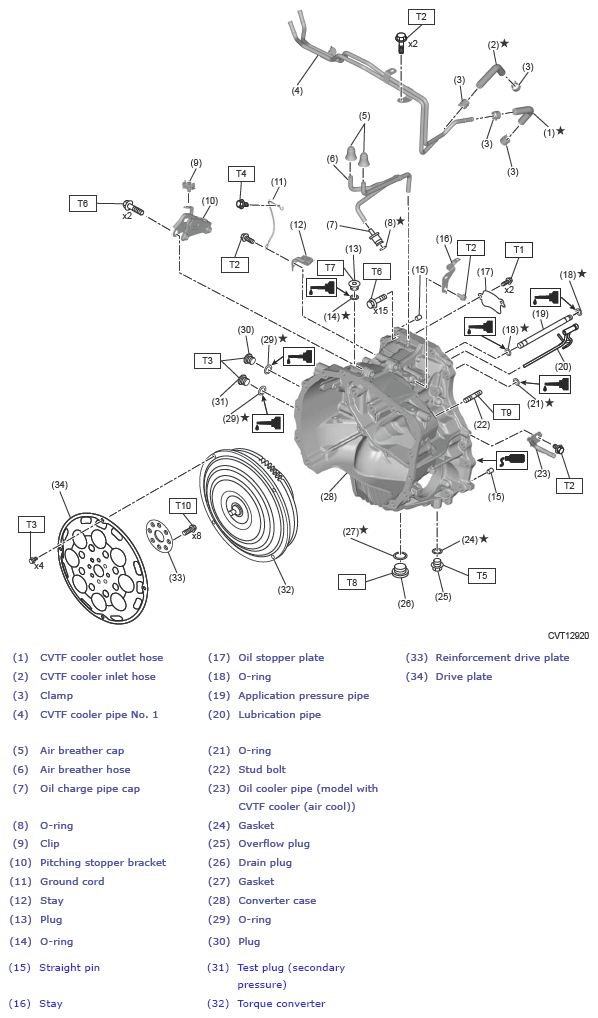

Torque Converter And Converter Case
WARNING: This page is about a different variant/trim than selected.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 9 (0.9, 6.6)
T2: 16 (1.6, 11.8)
T3: 25 (2.5, 18.4)
T4: 32.3 (3.3, 23.8)
T5: 35 (3.6, 25.8)
T6: 41 (4.2, 30.2)
T7: 50 (5.1, 36.9)
T8: 70 (7.1, 51.6)
T9: Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONVERTER CASE>ASSEMBLY .
T10: Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>DRIVE PLATE>INSTALLATION .
