Transmission Control Device
WARNING:
This page is about a different variant/trim than selected.

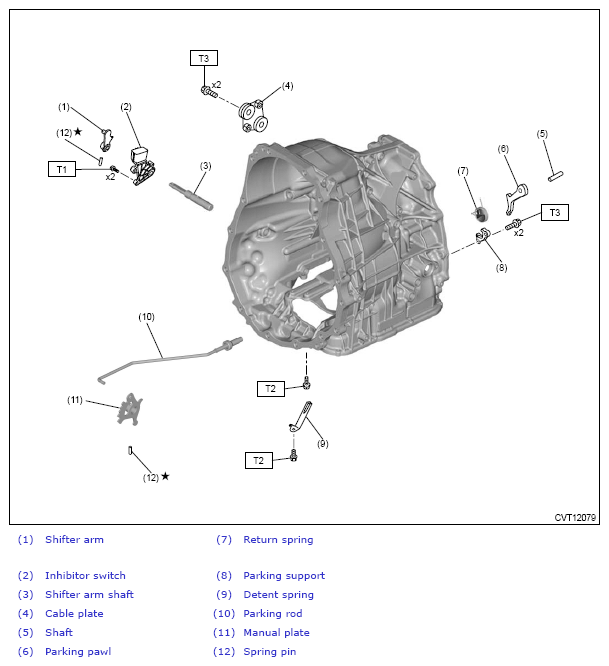

Fig 1: Transmission Control Device Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 5 (0.5, 3.7)
T2: 7 (0.7, 5.2)
T3: 25 (2.5, 18.4)
Courtesy of SUBARU OF AMERICA, INC.
